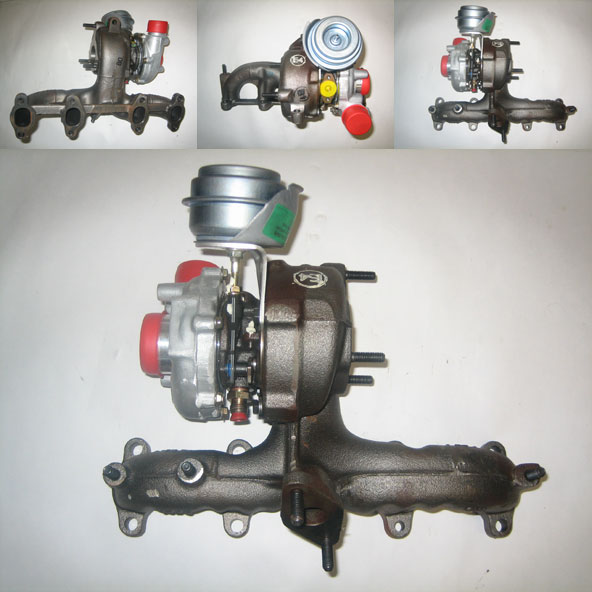

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2000-06 Audi Seat Volkswagen GT1749V(S1) Turbo 713672-0006
Product Description
| Part Number | 713672-5006S |
| Previous Version | 713672-0002, 713672-0003, 713672-0004, 713672-0005, 713672-5005S, , 713672-9006S, 713672-5005S, 713672-0002, 768329-5001S |
| OE number | 038253019C, 038253019CV500, 03G253016N, 038253019CV225 |
| Year | 2000-06 |
| Description | Audi A3, Seat Leon, Volkswagen Beetle, Golf IV |
| CHRA | 433395-0020 (433395-5020S, 433395-0040) (1102015919) $350.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | GT1749V(S1) |
| Engine | PD UI, ALH, AHF, AJM, AUY |
| Engine Manufacturer | VW |
| Displacement | 1.9L, 1896 ccm, 4 CYL |
| KW | 81/85/105 |
| RPM Max | 4000 |
| Angle α (compressor housing) | 177° |
| Angle β (turbine housing) | 90° |
| Bearing Housing | 433145-0005/722282-0002 (1102017450) $89.00 NEW IN STOCK |
| Turbine Wheel | 434533-0002/434533-0037/434533-0039 (1102017441, 1102017438)(Ind. 43. mm, Exd. 35.9 mm, Trm 69, 9 Blades) NEW IN STOCK |
| Comp. Wheel | 434812-0001/434812-0002 (Ind. 49. mm, Exd. 32. mm, Trm 45, Extended back disc type 6 blades)(1102015400) NEW IN STOCK |
| Back plate | 434813-0001/700593-0006/703682-0023/703682-0045 (1102015306) (1102015300) NEW IN STOCK |
| Heat shield Number | 433112-0001 (1102015342) NEW IN STOCK |
| Repair Kit | 732252-0001 (1102015756) $97.60 NEW IN STOCK |
| Thrust Kit | 732248-0003/732252-0001 $39.20 |
| Nozzle Ring | 704013-0001 (1102017830) NEW IN STOCK |
| Turbine Housing AR | VNT1 |
| Actuator | 434855-0015 $114.19 |
| Settings Waste gate adjustment (pressure) | 0.224-0.229 bar |
| Settings Waste gate (lift shaft) | 0.5-4.0 mm |
| Settings Waste gate (pressure) | 0.135-0.215 bar |
| Settings Waste gate (lift shaft) | 0.2 mm |
| Gasket (turbine inlet) (outlet) | 210311 (Inox Steel) |
| Gasket (turbine inlet) (inlet) | 210293 (Inox Steel) |
| Gasket (oil outlet) | 210243 (Paper) $4.30 |
| Manufacturer | Honeywell-Garrett |
2000-06 Audi A3 TDI with PD UI Engine 2000-06 Seat Leon TDI S with PD UI Engine 2000-06 Volkswagen Golf TDI with PD UI Engine 1996-03 Audi A3 1.9 TDI (8L) Engine ALH, AHF 1997-01 Audi A3 1.9 TDI (8L) Engine ALH, AHF 1999-05 Seat Leon 1.9 TDI Engine ALH, AHF 1999-03 Seat Toledo II 1.9 TDI Engine ALH 1999-04 Seat Toledo II 1.9 TDI Engine AHF 1997-07 Skoda Octavia I 1.9 TDI Engine ALH, AHF 1998-04 Volkswagen Beetle 1.9 TDI Engine ALH, AHF, AJM, AUY 1998-04 Volkswagen Bora 1.9 TDI Engine LH, AHF, AJM, AUY 1997-03 Volkswagen Golf IV 1.9 TDI Engine ALH, AHF There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
