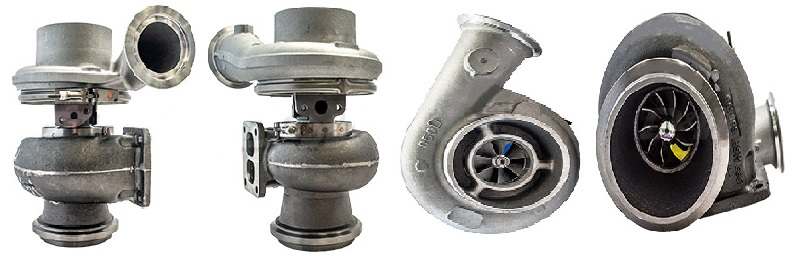

1996-06 Caterpillar Truck S310S086 Turbo 178477

1996-06 Caterpillar Truck S310S086 Turbo 178477
Item# turbo-truck-caterpillar-TC-178477
$1,431.69
Availability: Usually ships the next business day

Product Description


Part Number178477
Previous Version169510R, 169568, 169568R, 172314, 172314R, 172347, 172347R, 169510, 178477R, 469510, 469568, 472314, 472347, 478477
OE Number0R7216, 1080043R, 10R0183, 144-0816, 1440816, 145-5183, 1455183, 204-6489, 204-6490, 2046489, 2046490
Year1996-06
DescriptionTruck
Turbo Model S310S026
CHRA169516 (0R7217, 2095384, 10R0472, 1440817, 144-0817, 169516R, 178173, 469516, 478173) $856.45 NEW IN STOCK
Prefix3CS, 8YS, MBJ, 4CR, BFT, 8AR
Engine Model C10, 98 C10, 3412C, 3412E
Engine Manufacturer Caterpillar
KW 246/335 hp
Replaces Part Number 172314, 172347
RPM1800
Displacement 10.0L, 10000 ccm
FuelDiesel
Truck Engine C-10
S/N3CS23768-UP, 8YS7760-UP
Bearing Housing169576 (Oil Cooled) $293.45 NEW IN STOCK
Turbine Wheel169514 (Ind. 73.68 mm, Exd. 79.8 mm, Trm 12.7, 10 Blades) $487.20 NEW IN STOCK
Comp. Wheel169511 (171579)(Ind. 60. mm, Exd. 88. mm, 7+7 Blades, Superback) $168.02 NEW IN STOCK
Back plate167543 $40.48 NEW IN STOCK
Heat shield Number167550 (2030016087) $14.64 NEW IN STOCK
Repair Kit318394 (318393, 315431, 169032, 169636)(1253300750, 5000030018) $97.52 NEW IN STOCK
Turbine Housing169095 (1371601) $596.80
Compressor Cover169512 (1440818) $339.60
Gasket (turbine inlet)409038-0001 (210835-0000, 9749, 7M7273) $14.02
ManufacturerBorg Warner - 3K - Schwitzer, BWTS USA

Applications

1996-06 Caterpillar Truck with C10 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
