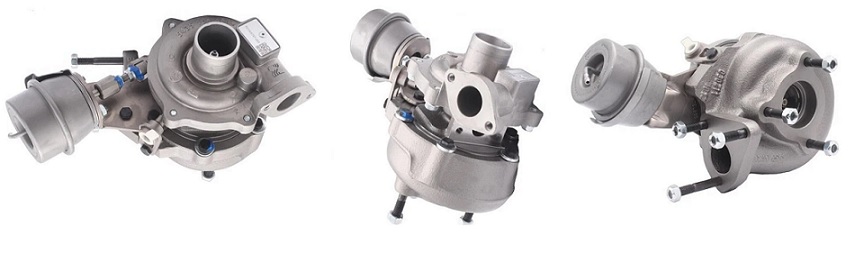

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2002-06 Fiat Commercial Vehicle BV35 Turbo 54359880014
Product Description
| Part Number | 54359880014 |
| Previous Version | 5435-988-0014, 5435-971-0014 |
| OE number | 55198317, 71789039, 93189317, 860020, 860127 |
| Year | 2002-06 |
| Description | Commercial, Cars |
| Manufacturer Part Number | 54359710014, 54359700014, 5435-971-0014, 5435-970-0014 |
| CHRA | 54357100513 (5435-710-0513)(1303035904, 1000030153) $300.00 NEW IN STOCK, MADE IN UK |
| Turbo Model | BV35-1573DBK462.18AVAXX, BV35 |
| Engine Manufacturer | Fiat |
| Engine | MultiJet, 1,25 SJTD |
| Displacement | 1.25L, 1248 ccm, 4 Cylinders |
| KW | 66/90 HP |
| RPM Max | 4000 |
| Fuel | Diesel |
| Angle α (compressor housing) | 180° |
| Angle β (turbine housing) | 152° |
| Bearing Housing | 54351504002 (Oil Cooled)(1303035454, 1900011246) $46.00 |
| Turbine Wheel | (Ind. 31. mm, Exd. 34.7 mm, 9 Blades)(1303035437, 1100016233) $70.00 NEW IN STOCK |
| Comp. Wheel | (Ind. 38.9 mm, Exd. 102.3 mm, Trm 3.09, 5+5 Blades)(1303035403, 1200016296) $39.00 NEW IN STOCK |
| Back plate | (Deep S/Back 38mm C/Wheel)(1303035302, 1800016003) $19.00 NEW IN STOCK |
| Heat shield Number | 54351652000 (1303039340, 2030016045) $13.52 NEW IN STOCK |
| Repair Kit | (1303035754, 5000040040) $67.61 KP35 (360° twin ring comp) 37.61 NEW IN STOCK |
| Turbine Housing AR | VTG |
| Nozzle Ring | (1303035875, 3000016046) NEW IN STOCK |
| Actuator | (2061016441) NEW IN STOCK |
| Gasket Kit | 215302 (1900100455, 2090505481) NEW IN STOCK |
| Gasket (inlet) | 210673 |
| Gasket (outlet) | 210870 |
| Washer (oil inlet) | 435197-0005 |
| Gasket (oil output) | 210914 |
| Gasket (air outlet compressor housing) | 210986 |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS HU |
2002- Fiat Grande Punto, Doblo, Punto, Strada, Idea, Linea MultiJet, 1,25 SJTD 2002- Alfa Romeo MiTo 1.3 JTDM MultiJet, 1,25 SJTD 2002- Opel/Vauxhall Corsa MultiJet, 1,25 SJTD 2002- Lancia Musa, Epsilon MultiJet, 1,25 SJTD There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
