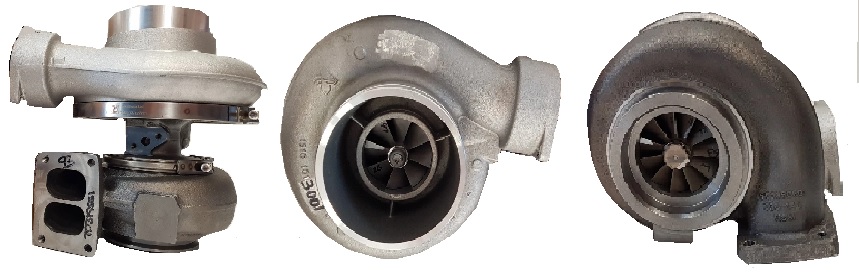

2003-09 Volvo Penta Marine S500 Turbo 15009889509

Item# turbo-marine-volvo-penta-TC-15009889509
$4,372.15
Availability: Usually ships the next business day

Product Description


Part Number15009889509
Previous Version1500-988-9509, 1500 988 9509, 15009989509, 14839888640
OE number3802140, 3837220
Year2003-09
Description Marine
Manufacturer Part Number 319509
CHRA15007108000 (1500-710-8000, 319690) $1,298.00 IN STOCK
Turbo ModelS500-110H58TAQM/100HJ3
FuelDiesel
EngineD16, TAD1641VE, TAD1642VE, TAD1640GE
Fuel Diesel
Engine ManufacturerVolvo - Penta
S/N2016010024, 2016010025
Angle α (compressor housing) 90°
Angle β (turbine housing) 257°
Bearing Housing15001504501 (Oil Cooled)
Turbine Wheel318156 (Ind. 88.95 mm, Exd. 99. mm, 11 Blades) $672.48 NEW IN STOCK
Comp. Wheel317294 (Ind. 78.32 mm, Exd. 114.57 mm, Trm 8.99, 8+8 Blades, Billet) $394.27 NEW IN STOCK
Back plate317311 (171524) $74.04 NEW IN STOCK
Heat shield Number189498 $84.85 NEW IN STOCK
Repair Kit318416 $140.23 NEW IN STOCK
Turbine Housing AR1.45
NOTE Inter cooler; restricted to Volvo-Penta
Replaced By 15009889509
ManufacturerBorg Warner - 3K - Schwitzer, BWTS UK

Applications

2003-09 Volvo Penta Marine with D16 Engine

Core Charge

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
