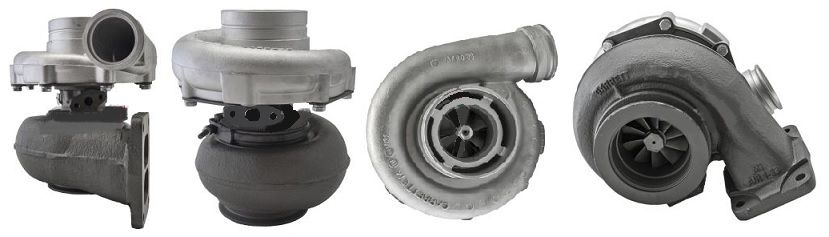

2003-07 Volvo Truck GT4594N Turbo 452164-0019

Item# turbo-truck-volvo-TC-4521640019
$2,320.84
Availability: Usually ships the next business day

Product Description


Part Number452164-5019S
Previous Version 452164-0014, 452164-0019, 452164-5014S, 452164-19
OE number 20516526, 21031703
Year 2003-07
DescriptionTruck, Tour Bus
CHRA712402-0091 (712402-5091S) $650.00 NEW IN STOCK, MADE IN USA
Turbo Model GT4594N
EngineD12B, D12B USA
Engine Manufacturer Volvo
Displacement 12.0L, 12000 ccm, 6 Cylinders
KW 319/434
RPM Max 1700
Fuel Diesel
Angle α (compressor housing) 50º
Angle β (turbine housing) 180º
Bearing Housing712342-0016 $125.00 NEW IN STOCK
Turbine Wheel763590-0007 (763590-0003)(Ind. 87.12 mm, Exd. 77.77 mm, 10 Blades) $195.00 NEW IN STOCK
Comp. Wheel737714-0002 (Ind. 62.28 mm, Exd. 94.1 mm, 6+6 Blades, Special) $69.00 NEW IN STOCK
Back plate 726992-0003 NEW IN STOCK
Heat shield Number 410366-0007 (410366-0003, 410366-0004) $16.42 NEW IN STOCK
Repair Kit709153-0001 (1102042750) $90.80 NEW IN STOCK
Turbine Housing449495-0019
Compressor Cover734070-0018/449858-0062
Turbine Housing AR1.33
Gasket (turbine inlet)132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000, 52231083002)(1900000003) $13.20
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) $4.38
Gasket (oil outlet)210060 (311585, 2475013, 148062) (Paper) $4.48
ManufacturerHoneywell-Garrett

Applications

2003-07 Volvo Tour Bus, Truck with D12B Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
