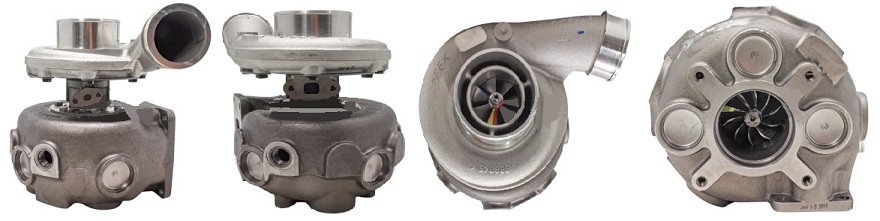

1995-01 Caterpillar Marine S330W057 Turbo 171475

1995-01 Caterpillar Marine S330W057 Turbo 171475
Item# turbo-marine-cat-TC-171475
$2,671.61
Availability: Usually ships the next business day

Product Description


Part Number171475
Previous Version170245, 170245R, 179609, 1380-970-0115, 1380-988-0115, 13809700115, 13809880115
OE number0R7255, 0R9992, 152-7460, 1527460, 187-4446, 1874446, 470245, 471475, 479609
Description Marine Engine
CHRA170255 (0R7254, 164-9419, 1649419, 170255R, 178178, 478178) $1097.52 NEW IN STOCK
Turbo ModelS330W057, S300W041
Prefix6SR, 8NM
Manufacturer Part Number13809880115, 13809700115
Engine ManufacturerCaterpillar
Displacement 7.0L, 7000 ccm
Marine Engine 3126, 3126E
S/N8NM2820-4256, 6SR405-99999, 8NM4257-4257, 6SR00001-UP, 8NM00001-UP, 6SR405-99999, 8NM4257-4257
Fuel Diesel
Bearing Housing170247 (Oil Cooled) $299.92 NEW IN STOCK
Turbine Wheel170246 (Ind. 64.63 mm, Exd. 77.56 mm, 10 Blades) $508.02
Comp. Wheel169578 (Ind. 60.50 mm, Exd. 79.76 mm, 7+7 Blades, Superback) $217.65
Back plate 167543 (3762564, 62564)(1253300300) $44.95 NEW IN STOCK
Heat shield Number167550 (317590, 3519302)(1649415) $14.64 NEW IN STOCK
Repair Kit318394 (169032, 169636, 318393)(176392)(1253300750) $97.52 NEW IN STOCK
Turbine Housing (Water Cooled)169843 (1527458) $908.68
Compressor Cover168845 (1331360, 1874443) $440.14
Gasket (turbine inlet)4P7704 $13.44
NOTE Restricted to OE customer
ManufacturerBorg Warner - 3K - Schwitzer, BWTS USA

Applications

Caterpillar Marine with 3126 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
