Home > Force Inductions > TURBO CHARGERS > VARIOUS > CUMMINS > 1997-02 Cummins Emerald Various HX35G Turbo 3597420

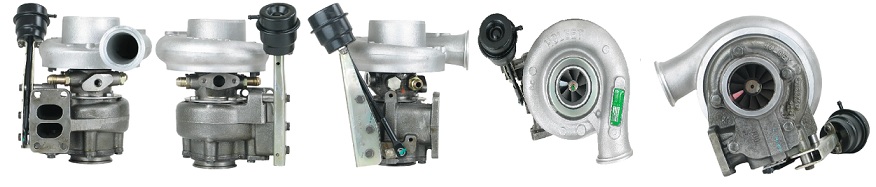

1997-02 Cummins Emerald Various HX35G Turbo 3597420

Item# turbo-various-cummins-TC-3597420
$1,529.50
Availability: Usually ships the next business day

Product Description


Part Number3597420
Previous versions3538702, 3538703, 353870300, 3538703H
OE number4025413
DescriptionCummins Emerald Various
Manufacturer Part Number 3538702
CHRA3537811 (4027533, 4027532, 3537811H) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35G-D7735L/E12PB11, HX35G
Engine 6BTAA
Engine Manufacturer Cummins
KW230
Displacement 5.9L, 5900 ccm
KW230
FuelGas Engine
Angle α (compressor housing)285º
Angle β (turbine housing) 165º
Bearing Housing (Water Cooled) 3534487 (3536294, 4046247)(Water Cooled) $115.00 NEW IN STOCK
Turbine Wheel3519336 (3595832)(Ind. 70.05 mm, Exd. 60. mm, 12 Blades)(1152301435, 1100030005, 1100016180) $128.40 NEW IN STOCK
Comp. Wheel3599651 (3532312)(Ind. 50. mm, Exd. 78. mm, 7+7 Blades) $63.25 NEW IN STOCK
Back plate3530923 (1154351300) $21.48 NEW IN STOCK
Heat shield Number3519302 (3519304)(1152301340) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Turbine Housing 3536860 $394.56
Settings waste gate (pressure)0.5-1.04/0.33-1.27 bar
Settings Waste gate (lift shaft)1.02 mm
Actuator4030017 (3594012H, 3534534, 4030087, 4030087H, 4030094, 4032710) $162.60
ManufacturerHOLSET

Applications

1997-02 Cummins Emerald Various with 6BTAA Engine GAS

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
