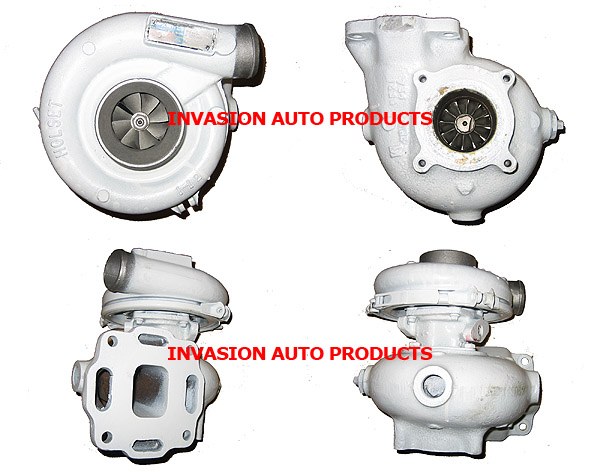

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1985-10 Cummins Marine H1C Turbo 3524424
Product Description
| Part Number | 3524424 |
| Previous versions | 3524427, 352442700, 3524427H, 3528761, 3528762, 3531034, 3533732, 3533733, 3533734, 3534373, 3534374, 3535434, 3535435, 3538723, 3538760, 3538780, 3538781, 3539466, 3539467, 3539472, 3539473 |
| OE number | 3802594, 3802594NX, 3802594RX |
| Year | 1985- |
| Description | Marines, Various |
| Manufacturer Part Number | 3802297, 3802297H, 3802297NX, 3802297RX, 3802589, 3802589NX, 3802589RX, 3802870, 3802870NX, 3802870RX, 3802911, 3802911NX, 3802911RX, 3897539, 3897540 |
| CHRA | 3537827 (353782700, 3523754)(1000020184) $350.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | H1C-8253AF/J13S11, H1C |
| Engine | 6BT, 4BT |
| Engine Manufacturer | Cummins |
| Displacement | 5.9L, 59080 ccm |
| Fuel | Diesel |
| KW | 210 HP |
| Angle α (compressor housing) | 199.5/241° |
| Angle β (turbine housing) | 360/301° |
| Bearing Housing | 3530591 (3500591, 3530592)(oil inlet)(1152301450, 1900011017) $47.00 NEW IN STOCK |
| Turbine Wheel | 3519336 (3595832)(Ind. 70. mm, Exd. 60. mm, Trm 11., 12 Blades)(1152301435, 1100030005) $108.40 NEW IN STOCK |
| Rotor Assembly | 3523755 (352375500) |
| Comp. Wheel | 3599638 (3537155, 359963800)(Ind. 51.99 mm, Exd. 82.95 mm, Trm 10.3, 8+8 Blades)(1152301400, 1200016054) $33.50 NEW IN STOCK |
| Back plate | 3522801 (1300016005) $36.20 NEW IN STOCK |
| Heat shield Number | 3519302 (1152301340, 2030016031) $14.00 NEW IN STOCK |
| Repair Kit | 4027309 (3545652, 3802148)(1152301750, 5000020014) $74.00 NEW IN STOCK |
| Turbine housing | 3519934 $395.00 |
| Turbine Housing (Water Cooled) | 3524425 $1249.93 |
| Compressor Cover | 3522389 |
| Gasket (turbine inlet) | 210849 (3921926, 3916300, 3905033)(Stainless Steel)(Marine) $49.00 |
| Gasket oil inlet | 210850 (392196100)(Inox Steel) $28.00 |
| Gasket (oil outlet) | 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32 |
| Gasket Kit | 3545575 (1900100057) $16.00 NEW IN STOCK |
| Plugs | 3503677 |
| Manufacturer | HOLSET |
1985- Cummins Marines with 6BT 4BT Engine There is a $300.00 core charge which has been included in the price,
it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
