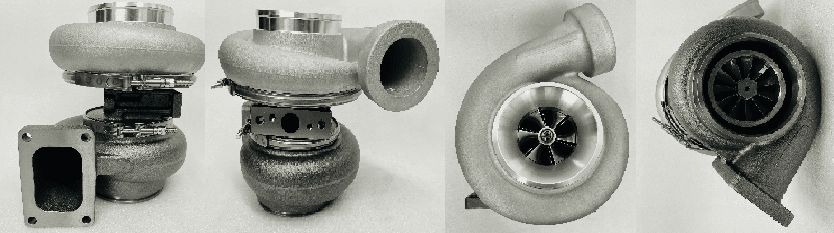

1990- Detroit Diesel Industrial, Highway Truck TV7512 Turbo 465369-0008

Item# turbo-industrial-detroit-TC-465369-0008
$1,960.80
Availability: Usually ships the next business day

Product Description


Part Number465369-5008S
Previous Version465369-0008, 465369-8, 465369-9008
OE numberR23508859, 23508799
Year1990-
DescriptionHighway Truck, Industrial
CHRA442032-0030 (442032-9030S, 23508859) $949.42
Turbo ModelTV7512
Engine6V92TAB
Engine ManufacturerDetroit
Displacement9.0L, 9000 ccm, V6 Cylinders
KW207/281 HP
RPM Max2100
FuelDiesel
Angle α (compressor housing)22°
Angle β (turbine housing)67°
Bearing Housing 442028-0001 (8925742)(Oil Cooled) $201.08 NEW IN STOCK
Turbine Wheel442029-0020 (23502111))(Ind. 84.79 mm, Exd. 96.85 mm, 11 Blades)(1101675436) $389.60 NEW IN STOCK
Comp. Wheel441829-0009 (23508860)(Ind. 76.6 mm, Exd. 102.3 mm, Trm 56*55, 6+6 Blades, Superback) $176.66 NEW IN STOCK
Back plate442027-0001 (8925746) $154.46 NEW IN STOCK
Heat Shield / Shroud407967-0000 (5149173) $66.98 NEW IN STOCK
Repair Kit468267-0000 (23514215)(1101678752) $91.60 NEW IN STOCK
Turbine Housing443110-0014 $456.89
Compressor Cover442821-0003 (23501516) $369.88
Turbine Housing AR0.96
Gasket oil inlet 129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900)(1900000035) $4.40
Gasket (oil outlet)129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
Manufacturer Honeywell-Garrett

Applications

1990- Detroit Diesel Highway Truck, Bus Coach, Industrial with 6V92TAB Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
