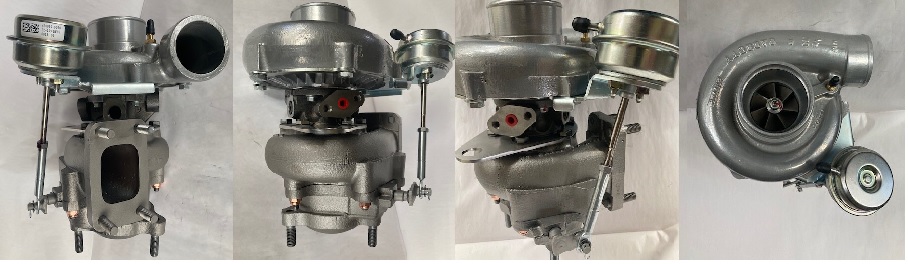

1986- Ford Sierra RS500 TB0237 Turbo 494900-0001

Item# turbo-car-ford-TC-4949000001
$2,998.00
Availability: Usually ships the next business day

Product Description


Part Number494900-5001S
Previous Part Number494900-0001, 709381-0001, 709381-1, 7093810001
OE number YB0523
Year1986-
DescriptionFord Sierra Cosworth RS500, MD475R
CHRA L494994-0000
Turbo ModelTB0237, T31-T
Displacement2.0L, 1986 ccm, 16V
KW162/220 HP
Fuel Diesel
Angle α (compressor housing)50°
Angle β (turbine housing) 253º
Bearing housingL494267-0006
Turbine Wheel432457-0004
Comp. Wheel409535-0007 (Ind. 76.0 mm, Exd. 56.0 mm, Trm 54)
Back plate409629-0003/409629-0001/409629-0006 (1100030300) $48.00 NEW IN STOCK
Heat shield Number409627-0000 (1100030340, 103121-0000) $11.80 NEW IN STOCK
Repair Kit468139-0000 (1100030750)(Dynamic) $69.50 $69.50 NEW IN STOCK
Turbine HousingL494884-0001
Compressor Cover442204-0070/L494920-0001
Actuator430099-0031 (18 PSI) $149.00
Settings Waste gate (pressure)0.655-0.724 bar
Settings Waste gate (lifting rod)0.38 mm
Gasket (turbine inlet)409039-0001
Gasket oil inlet210023
Gasket (oil outlet)210021
MD475R Hybrid turbosReplace 494900-0001
Please NoteThis turbocharger requires a modified oil feed pipe and oil drainpipe. Oil feed adapter fitting and oil return flange supplied with turbo. This turbocharger must be run with water cooling pipes fitted. Failure to do so will invalidate any warranty and potentially lead to turbocharger failure
ManufacturerHoneywell-Garrett

Applications

1986- Ford Sierra RS500

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
