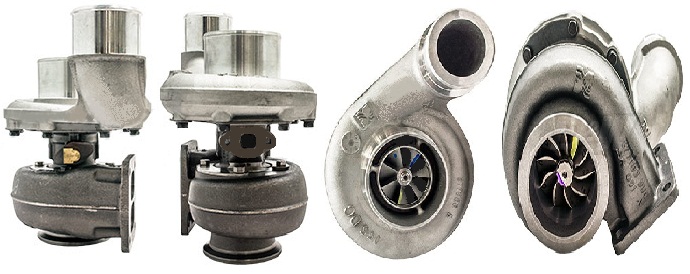

1998-06 John Deere Agricultural S300 Turbo 177284

1998-06 John Deere Agricultural S300 Turbo 177284
Item# turbo-agricultural-john-deere-TC-177284
$1,124.65
Availability: Usually ships the next business day

Product Description


Part Number177284
OE numberRE520765, RE529598, RE520762
Year 1998-06
DescriptionAgricultural
Equip174138, 176121
CHRA 176650 $590.45 NEW IN STOCK
Turbo ModelS300-91H42EF-DCM/0.9180BM1
Engine6081H
Engine ManufacturerJohn Deere
Displacement 8.1L, 8100 ccm
KW 2200
Fuel Diesel
Bearing Housing171448 (Oil Cooled) $106.00 NEW IN STOCK
Turbine Wheel173162 (Ind. 79.68 mm, Exd. 73.53 mm, Trm 83, 10 Blades) $150.00 NEW IN STOCK
Comp. Wheel174267 (Ind. 63.4 mm, Exd. 91.4 mm, Trm 52, 7+7 Blades, Billet) $49.00 NEW IN STOCK
Back plate167543 $40.48 NEW IN STOCK
Heat shield Number167550 (317590) $14.64 NEW IN STOCK
Repair Kit 315431 (318393) $117.52 NEW IN STOCK
Gasket (oil outlet) 311496 (210021, 210021-0000, 409037-0000, 413671-0000, 3519807)(1900000027) $4.32
Gasket Kit318418 $16.60
ManufacturerBorg Warner - 3K - Schwitzer, BWTS USA

Applications

1998-06 John Deere with 6081H Engine

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
