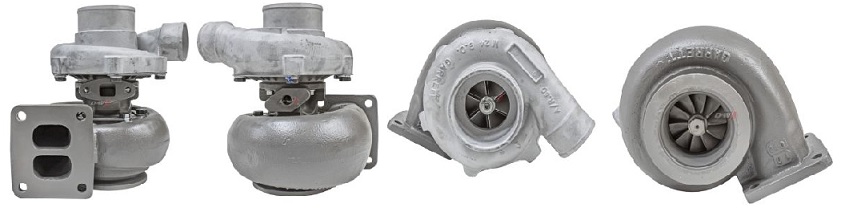

1996- John Deere Agricultural, Industrial T350-04 Turbo 471050-0002

1996- John Deere Agricultural, Industrial T350-04 Turbo 471050-0002
Item# turbo-industrial-john-deere-TC-4710500002
$1,260.43
Availability: Usually ships the next business day

Product Description


Part Number471050-5002S
Previous Version 471050-0001, 471050-0002, 471050-0003, 471050-0006, 471050-0008, 471050-0017, 471050-0019, 471050-0020, 471050-0021, 471050-0023, 177263, 471050-0025
OE numberRE509384, RE59998, RE60000, RE60074, RE60388, RE69157, SE500276, SE502219
Year1996-
Description Industrial Tractor, Agricultural
CHRA446346-0004 (446346-5004S) $450.00 NEW IN STOCK, MADE IN USA
Turbo ModelS200, T350-04
Engine Manufacturer John Deere
Displacement6.8L, 6800 ccm, 6 Cylinders
Fuel Diesel
KW 85/101/137
RPM Max 2300-2100
Angle α (compressor housing)335º
Angle β (turbine housing)0º
Bearing Housing430027-0020 (Oil Cooled) $65.20 NEW IN STOCK
Turbine Wheel446265-0001 (Ind. 61.85 mm, Exd. 71. mm, Trm 76, 10 Blades) $154.99 NEW IN STOCK
Comp. Wheel446279-0003 (Ind. 49.8 mm, Exd. 69. mm, Trm 52, 6+6 Blades) $131.19 NEW IN STOCK
Back plate409629-0013 $28.64 NEW IN STOCK
Heat shield Number446183-0001 $13.24 NEW IN STOCK
Repair Kit468100-0000 (3524796, 2W0716, 6N7236, 168984, 310063, 188006-0000)(1100040750, 5000010041) $69.60 NEW IN STOCK
Turbine Housing446329-0011
Compressor Cover446296-0009
Turbine Housing AR 1.21
Gasket (turbine inlet)407294-0001 (310694, 303031063, 166618C, 8A0709, A58899, E5HN6N640AA, E7HZ6N640A, T30820, 312617)(Stainless Steel) $12.06
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
Gasket Kit215246 (2090505333)
ManufacturerHoneywell-Garrett

Note: Interchangeable with -5001S and -5003S but changes the orientations

Applications

1996- John Deere Tractor 350 Series "Lo Mount" with 6068T Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
