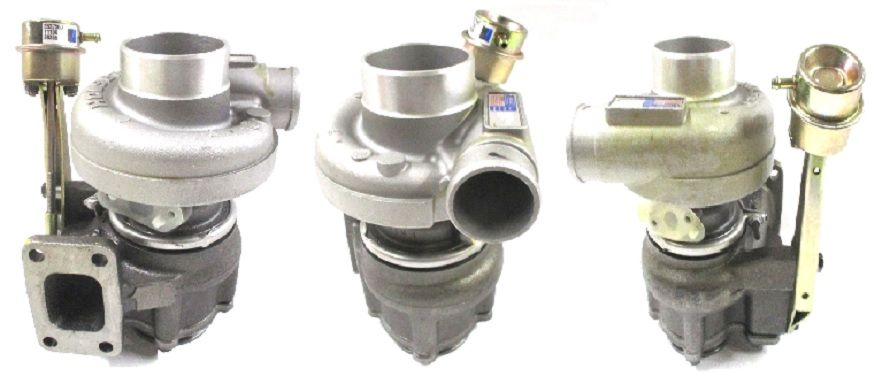

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1997-12 Komatsu Various HX30W Turbo 3590026
Product Description
| Part Number | 3590026 |
| Previous Version | 3590027 |
| OE number | 6732-81-8202, 6733-81-8122, 3806246 |
| Year | 1997-12 |
| Description | Elite, Elite Industrial Various |
| Manufacturer Part Number | 3590027, 3592322, 3592580 |
| CHRA | 4027483 (3580573) $690.00 |
| Turbo Model | HX30W-Q6819A/B06BX33, HX30W |
| Engine | 4BT |
| Engine Manufacturer | Cummins – Komatsu - Elite |
| Displacement | 3.9L, 3900 ccm |
| KW | 110 |
| Fuel | Diesel |
| Angle α (compressor housing) | 201/340° |
| Angle β (turbine housing) | 20º |
| Bearing Housing | 3539898 (4030801) $178.06 NEW IN STOCK |
| Turbine Wheel | 3539805 (Ind. 40.1 mm, Exd. 67.97 mm, 12 Blades)(1153035436) $149.00 NEW IN STOCK |
| Comp. Wheel | 3592013 (Ind. 44. mm, Exd. 73. mm, Trm 36, 6+6 Blades, Superback) $99.00 NEW IN STOCK |
| Back plate | 3530923 (1154351300) $33.48 NEW IN STOCK |
| Heat shield Number | 3519302 (3519304)(1152301340) $24.95 NEW IN STOCK |
| Repair Kit | 3575205 (4027485)(1153030750) $32.80 NEW IN STOCK |
| Gasket (turbine inlet) | 409039-0000 (Inox Steel)(409039-0001, 210019, 2405022)(1900000006) $13.52 |
| Gasket (oil outlet) | 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) $4.48 |
| Gasket (oil inlet) | 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037)(Paper) $4.48 |
| Gasket Kit | 3545575 (1900100057) $16.00 NEW IN STOCK |
| Manufacturer | HOLSET |
1997-12 Komatsu Various with 4BT Engine There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
