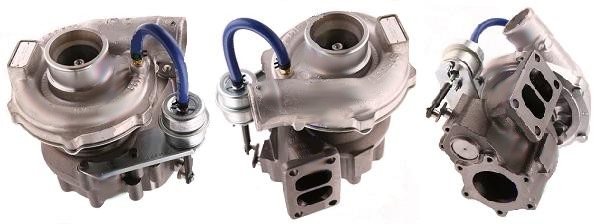

1999- Perkins Agricultural GT3267S Turbo 452233-0006

1999- Perkins Agricultural GT3267S Turbo 452233-0006
Item# turbo-agricultural-perkins-TC-4522330006
$980.00
Availability: Usually ships the next business day

Product Description


Part Number452233-5006S
Previous Version452233-0005, 452233-0006, 452233-0013, 452233-0014, 452233-0015, 452233-0010
OE number 2674A096, 2674A099, 2674A334, 2674A336, 2674A337, U2674A096, U2674A099, U2674A334, U2674A336, U2674A337, 141-8587, 141-9768, 1418587, 1419768
Year1999-
DescriptionAgricultural BP26
CHRA436058-0006 (436058-5006S) $550.00 NEW IN STOCK
Turbo Model GT3267S
EngineT6.60
Engine ManufacturerPerkins
Displacement6.0L, 6000 ccm, 6 Cylinders
KW112
RPM Max2500
FuelDiesel
Angle α (compressor housing)90°
Angle β (turbine housing)173°
Bearing Housing447535-0003 (Oil Cooled)(1900011181) $59.60 NEW IN STOCK
Turbine Wheel434444-0008 (Ind. 64. mm, Exd. 54. mm, 10 Blades) $145.00 NEW IN STOCK
Comp. Wheel434437-0003 (Ind. 67. mm, Exd. 48.25 mm, Trm 52, 6 Blades Threaded bore type) $139.00 NEW IN STOCK
Back plate436040-0004 (1300016139) $23.76 NEW IN STOCK
Heat shield Number447553-0006 $11.76 NEW IN STOCK
Repair Kit709147-0001 (1102032750) $127.00 NEW IN STOCK
Turbine Housing435066-0046
Compressor Cover436237-0010
Actuator434133-0024
Gasket Kit 215028 (2090505315)
Settings Waste gate (pressure)1.450-1.550 bar
Settings Waste gate (lift rod)1.00 mm
Gasket (turbine inlet)409039-0000 (312617, 2405022, 7C7431)(Stainless Steel) $13.52
Gasket (turbine outlet)210551 (Inox Steel)
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210060 (Paper) (311585, 148062) $4.48
ManufacturerHoneywell-Garrett

Applications

1999- Perkins Agricultural BP26 with T6.60 6 CYL Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
