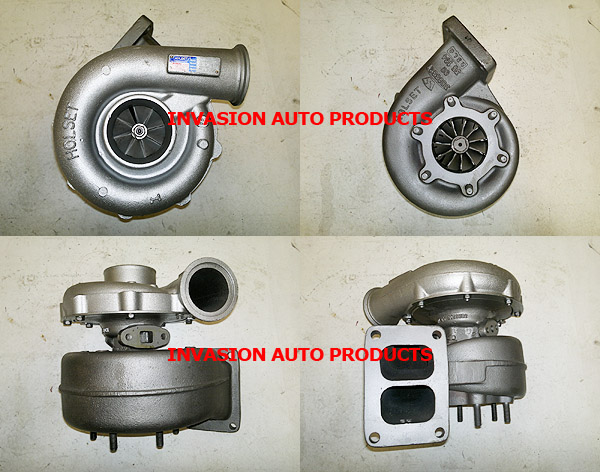

1994- Perkins British Rail, Truck H2C Turbo 3593324

1994- Perkins British Rail, Truck H2C Turbo 3593324
Item# turbo-truck-perkins-TC-3593324
$1,120.00
Availability: Usually ships the next business day

Product Description


Part Number3593324
Previous Part Number3593325, 4033149, 4033149H, 3535269
OE numberCV68712, OE52233, OE52238
Year 1994-
Description Truck, British Rail
Manufacturer Part Number3593325
CHRA3522803 (3522803H, 352280300) $350.00 NEW IN STOCK, MADE IN USA
Turbo ModelH2C-8650T/S35W11, H2C
Engine Eagle, TW2 2006, CV68712/1
Manufacturer HOLSET
KW350
FuelDiesel
Angle α (compressor housing)105°
Angle β (turbine housing)128°
Bearing Housing3525199 (352519900)(403040002)(Oil Cooled)(1900011204) $76.00 NEW IN STOCK
Turbine Wheel3522773 (Ind. 86.0 mm, Exd. 77.0 mm, Trm 13.13, 11 Blades)(1152302436, 1100016087)(401050002) $151.50 NEW IN STOCK
Rotor Assembly3522802
Comp. Wheel3503305 (350330500)(Ind. 59.89 mm, Exd. 85.97 mm, 8+8 Blades, Superback) $58.00 NEW IN STOCK
Back plate62564 (3762564)(404020001)(1253300300, 1800016038) $17.29 NEW IN STOCK
Heat shield Number3529846 (3533038)(1153055340, 2030016003)(406500001) $13.22 NEW IN STOCK
Repair Kit3545653 (1152302750, 5000020017) $68.80 NEW IN STOCK
Gasket Kit3800196 (380019600) $19.00
Gasket (turbine outlet)210239 (Stainless Steel) $22.00
Gasket oil inlet210023 (409036-0000, 210023-0000, 55739, 147837) $4.32
Gasket (oil outlet)210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807) $4.32
Can use3535271
ManufacturerHOLSET
ConditionRebuilt

Applications

1994- Perkins Truck British Rail with Eagle, TW2 2006 Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
