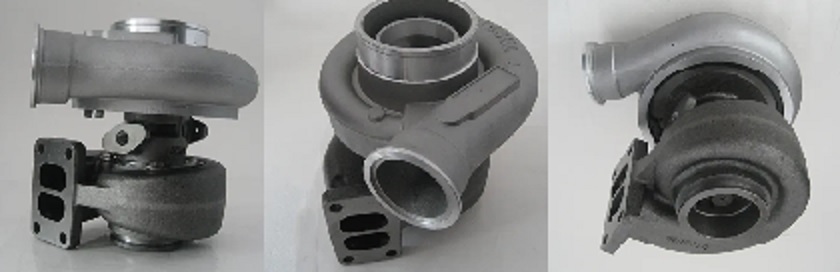

1995-02 TCL Truck HX35 Turbo 3536469

Item# turbo-truck-tcl-TC-3536469
$1,460.00
Availability: Usually ships the next business day

Product Description


Part Number3536469
Previous Version3536470, 3538935, 3590794, 3598566
OE number3598566,3590794
Year1995-02
Description TCL SE/SK TRUCKS, 125LM/HCV, HCV
CHRA3537817 (4027572) $395.00 NEW IN STOCK, MADE IN USA
Turbo Model HX35, HX35-L8243BA/E18DA11
Manufacturer Part Number 3536470, 3598566, 3538935, 3590794
Engine6BT
KW125/145 HP
Fuel Diesel
Engine Manufacturer TCL
Displacement6.0L, 6000 ccm
Angle α (compressor housing)310º
Angle β (turbine housing) 180º
Bearing Housing3532632/4027869 $75.00 NEW IN STOCK
Turbine Wheel3519336/3595832 (Ind. 70. mm, Exd. 60. mm, 11 Blades) (1152301435) $155.42 NEW IN STOCK
Comp. Wheel3599588/3533599 (Ind. 50 mm, Exd. 83. mm, 8+8 Blades) $65.00 NEW IN STOCK
Back plate3530923 (1154351300) $33.48 NEW IN STOCK
Heat shield Number3519304 (3519302)(1152301340) $14.95 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 2405022)(Inox Steel)(1900000006) $13.52
Gasket oil inlet210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
Gasket (oil outlet)210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
ManufacturerHolset

Applications

1995-02 TCL HCV Truck with 6BT Engine

1995-02 TCL SE/SK Trucks with 6BT Engine

1995-02 TCL 125LM/HCV Truck with 6BT Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
