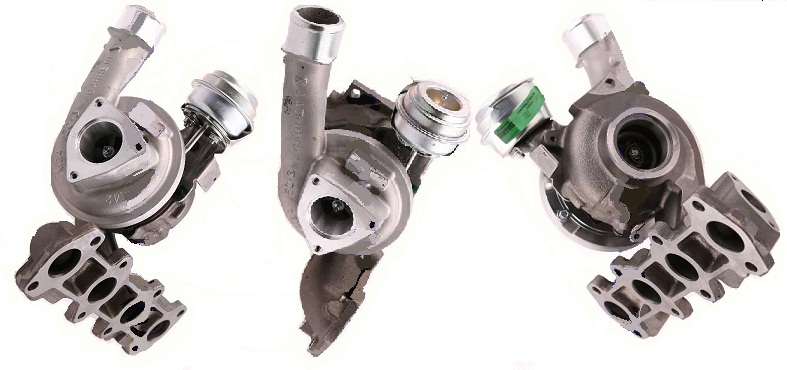

2006- Alfa Romeo 159 JTDM GT1749MV Turbo 767837-0001

2006- Alfa Romeo 159 JTDM GT1749MV Turbo 767837-0001
Item# turbo-car-alfa-TC-7678375001S
$1,338.66
Availability: Usually ships the next business day

Product Description


Part Number767837-5001S
Previous Version 754821-0001, 760822-0001, 760822-0002, 767837-0001
OE number 55195268, 55200807, 55205475, 71788697, 71790934, 55205181, 71790931
Year 2006-
DescriptionAlfa-Romeo 159, Fiat Grande Punto
CHRA703890-0125 (703890-5125S) (1102017914) $392.00 NEW IN STOCK, MADE IN USA
Turbo ModelGTA1749MV, GT1749MV
Engine M737AT19Z
Engine Manufacturer Fiat
Displacement 1.9L, 1910 ccm, 4 Cylinders
KW 88/120 HP
RPM Max 4000
Fuel Diesel
Bearing Housing1102117451 NEW IN STOCK
Turbine Wheel1102017448 NEW IN STOCK
Comp. Wheel717694-0017 (Ind. 34.7 mm, Exd. 49. mm, Trm 3.90, 5+5 Blades) $59.00 NEW IN STOCK
Back plate726173-0001 (1102017301) $19.00 NEW IN STOCK
Heat shield Number433112-0001 (1102015342) $14.82 NEW IN STOCK
Repair KitTBA
Nozzle Ring AssemblyTBA
Turbine HousingTBA
Compressor CoverTBA
ActuatorTBA
Turbine Housing AR VNT2
Gasket (oil outlet)210243
Gasket actuator EGR210546
Fitting oil inlet434681-0002
Gasket exhaust manifold210813
Manufacturer Honeywell-Garrett

Applications

2006- Alfa Romeo 1.9L JTD with M737AT19Z Engine

2006- Fiat Grande Punto 1.9L JTD with M737AT19Z Engine

2006- Fiat Sedici with M737AT19Z Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
