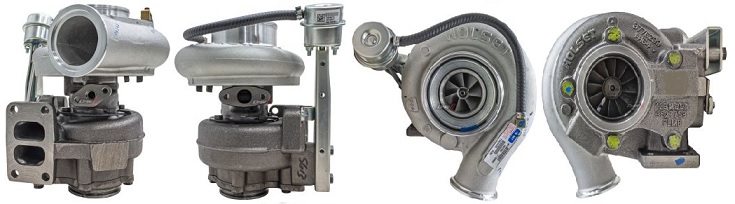

2004- Cummins Industrial, Ingersoll Rand Engine HX35W Turbo 4039332

2004- Cummins Industrial, Ingersoll Rand Engine HX35W Turbo 4039332
Item# turbo-industrial-cummins-TC-4039332
$1,893.95
Availability: Usually ships the next business day

Product Description


Part Number4039332
Previous Part Number4039632, 5452083
OE number4045700, 4045700H
Year 2004
DescriptionIngersoll Rand Various
Manufacturer Part Number3532901, 3532902, 3532903, 43532904, 3532906, 3534926, 3534979, 3534981, 3534982
CHRA4030868 (4027212, 3538421, 3575215)(1153035900, 1000020136) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35W-B77J70GM/A70Q86FE14PB-W, HX35W
Engine QSB, QSB Tier-3
Engine Manufacturer Cummins
KW 190/230HP
Displacement5.9L, 5900 ccm
Fuel Diesel
Angle α (compressor housing) 195/260/285/290/340°
Angle β (turbine housing) 20/165/360°
Bearing Housing3532630 (3591575, 4027249, 4027882)(Oil Cooled)(1153035450, 1900011016B) $68.00 NEW IN STOCK
Turbine Wheel3519336 (Ind. 70.05 mm, Exd. 59.9 mm, Trm 10.9, 12 Blades)(1152301435, 1100030005) $128.40 NEW IN STOCK
Comp. Wheel3599649 (3532310)(Ind. 54. mm, Exd. 76.47 mm, Trm 10.51, 7+7 Blades, Superback)(1153035401, 1200016303) $53.25 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $21.48 NEW IN STOCK
Heat shield Number3519302 (1152301340, 406400001) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK
Gasket Kit4032496
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel) $13.52
Gasket (Cover plate)3535001 (3922789)(Inox Steel) $14.50
Gasket (oil outlet)210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) $4.48
ManufacturerHOLSET
ConditionRebuilt

Applications

1994- Cummins Industrial, Ingersoll Rand with QSB, QSB Tier-3 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

This part comes with ONE YEAR unlimited mileage warranty.
