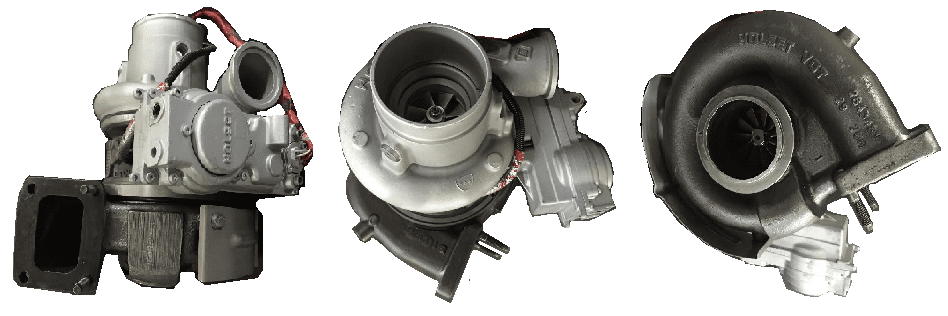

2009- Cummins ISX Various HE451VE Turbo 5350503

2009- Cummins ISX Various HE451VE Turbo 5350503
Item# turbo-various-cummins-TC-5350503
$3,950.00
Availability: Usually ships the next business day

Product Description


Part Number5350503
Previous Version2840007, 2841220, 2841221, 2841806, 2881807, 2881807NX, 2881807RX, 2882004, 2882004NX, 2882004RX, 2882111, 288211100, 288211100HX, 288211100NX, 288211100RX, 2882111H, 2882111NX, 2882111RX, 3767305, 3767306, 3768193, 3768193NX, 3768193RX, 3768194, 3773561, 3773562, 3773568, 3773568NX, 3773568RX, 3773569, 3792574, 3792581, 3792586, 379258600H, 379258600HX, 3792586H, 3795123, 3795123NX, 3795123RX, 3795144
Year2009-
OE NumberN/A
DescriptionVarious Trucks
Manufacturer Part Number5350506, 5454764, 5454764NX, 5454764RX, 5501254, 550125400H, 5501254H, 5501254HX, 5501313, 5501313NX, 5501313RX, 5502825, 5502825NX, 5502825RX
Turbo ModelHE451VE, HE400VG
CHRA$1400.00 NEW IN STOCK
EngineISX
Displacement15.0L, 1500 ccm
FuelDiesel
Engine ManufacturerCummins
Angle α (compressor housing)275°
Angle β (turbine housing)155°
Repair Kit$124.00 NEW IN STOCK
Turbine Housing ARVGT
Nozzle Ring Assembly$340.00 NEW IN STOCK
New Electronic Actuator 3791991 (2835940, 2837201, 3787559, 3787594, 3789667, 3789676, 3789677, 3791991, 379199100H, 3791991H, 4045991) $1,250.00
Electronic Actuator Kit4034289 (28087185, 28087185-10, 2808718510, 28169119, 28169119-10, 2816911910, 2835940, 2837201, 3789667, 3789676, 3789677, 3791991, 379199100, 4032066, 4032673, 4032760, 4032760NX, 4032760RX, 4034116, 4034208, 4034210, 4034210NX, 4034210RX, 4034289, 403428900, 403428900HX, 4034289H, 4034289HX, 4034289NX, 4034289RX, 4034403, 4034403NX, 4034403RX, 4042307, 4043340, 4045108, 4045991)(12 Volts) $750.00 NEW IN STOCK
Speed Sensor Kit4034201H (2837038, 2837039, 2837371, 2839964, 3042610968, 3777147, 3782559, 4032173, 4032315, 4032316, 4032806, 4034196, 4034198, 4034198H, 4034200, 403420000, 4034201, 403420100, 4041922, 4044473, 4046015, 4046016, 4307345, 4327173, 4327174, 4327185, 4327188, 4955360, 5327846, 532784600, 5327846H, 5550059, 5550059H, 5550060, 5550060H, 68039104AA, 904-341, 904-7139, 904341, 9047139) $99.99
Gasket Kit 3685535 $21.48
Gasket (turbine inlet)3102314 $19.49
NOTEActuator it needs to be calibrated to the turbo
NOTEThis turbo is sold without the Electronic Actuator
Listed$5,314.40 Plus $1,086.75 core charge
ManufacturerHolset

Applications

2009- Cummins Various with ISX, QSX Engine

Core Charge

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

This part comes with ONE YEAR unlimited mileage warranty.
