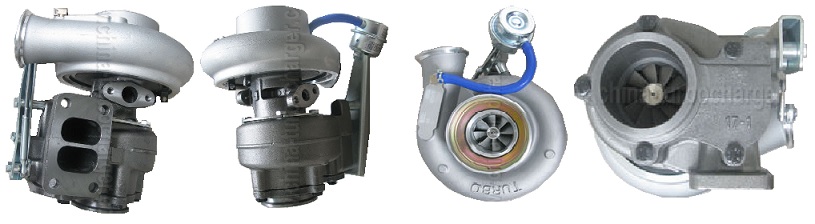

2004- Cummins Industrial, Truck HX35W Turbo 4043802

2004- Cummins Industrial, Truck HX35W Turbo 4043802
Item# turbo-truck-cummins-TC-4043802
$1,236.80
Availability: Usually ships the next business day

Product Description


Part Number4043802
Previous Version4033282H, 4039330, 4039630, 4039962, 4039963, 4043679, 4046265
OE number4955479, 495547900, 4955479NX, 4955479RX
Year2004-
Description Truck, Industrial
Manufacturer Part Number02-912597, 02/912597, 02912597, 2-912597, 2/912597, 2912597
CHRA4030871 (4030871H) $400.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35W-B77J70GM/A70Q86FE14PB-W, HX35W
EngineQSB 3c6, QSB, QSB Tier-3
Engine Manufacturer Cummins
ApplicationTIER 3
FuelDiesel
Angle α (compressor housing)330°
Angle β (turbine housing)180°
Bearing Housing4027882 (3532630)(Oil Cooled)(1900011016B) $68.00 NEW IN STOCK
Turbine Wheel3519336 (3595832)(Ind. 70.05 mm, Exd. 60. mm, Trm 11, 12 Blades)(1152301435, 1100030005) $118.40 NEW IN STOCK
Comp. Wheel3599649 (4035699)(Ind. 53.91 mm, Exd. 76.47 mm, Trm 5.09, 7+7 Blades, Billet) $120.00 NEW IN STOCK
Comp. Wheel3532310 (Ind. 54.00 mm, Exd. 76.47 mm, Trm 5.09, 7+7 Blades, Superback) $66.25 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $22.48 NEW IN STOCK
Heat Shield3519302 (3519304)(1152301340, 2030016031) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK
Actuator4030865 $167.01
Gasket (Cover plate)3535001 (Stainless Steel) $21.64
Gasket Kit3545575 (1900100057) $32.80 NEW IN STOCK
ManufacturerHOLSET

Applications

2004- Cummins Industrial, Truck TIER 3 with QSB Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
