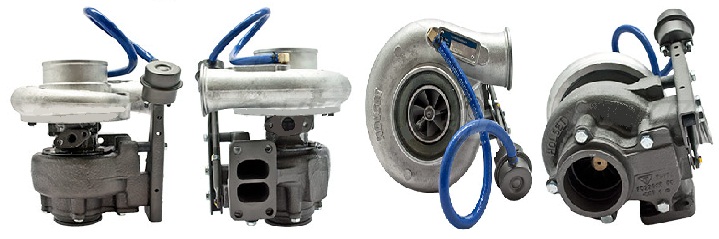

2004- Cummins Truck HX35W Turbo 4038597

2004- Cummins Truck HX35W Turbo 4038597
Item# turbo-truck-cummins-TC-4038597
$1,476.08
Availability: Usually ships the next business day

Product Description


Part Number4038597
Previous versions 4038209, 4038211, 4038211H, 4038598, 4041427, 4042667, 4044890, 4044890H, 4038597R, 4038597RX
OE number4955156, 4955156NX, 4955156RX
Year 2004-
DescriptionTruck, Industrial, Komatsu Grader
Manufacturer Part Number 4042667, 4038209, 4044890
CHRA4030868 (4027212, 3538421, 3575215)(1153035900, 1000020136) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelHX35W-A77J70GM/A70Q86FE14PB-W, HX35W
EngineQSB Tier-3, Cummins TIER 3
Displacement 3.9L, 3900 ccm
Engine ManufacturerCummins
Fuel Diesel
Angle α (compressor housing)160/185/277°
Angle β (turbine housing)20/360°
Bearing Housing3532630 (3591575, 4027249, 4027882)(Oil Cooled)(1153035450, 1900011016B) $68.00 NEW IN STOCK
Turbine Wheel3519336 (Ind. 70.05 mm, Exd. 59.9 mm, Trm 10.9, 12 Blades)(1152301435, 1100030005) $128.40 NEW IN STOCK
Comp. Wheel3599649 (3532310)(Ind. 54. mm, Exd. 76.47 mm, Trm 10.51, 7+7 Blades, Superback)(1153035401, 1200016303) $53.25 NEW IN STOCK
Back plate3530923 (1154351300, 1800016009) $21.48 NEW IN STOCK
Heat shield Number3519302 (1152301340, 406400001) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750, 5000020021) $88.80 NEW IN STOCK
Gasket Kit4032496
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006)(Inox Steel) $13.52
Gasket (Cover plate)3535001 (3922789)(Inox Steel) $14.50
Gasket (oil outlet)210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) $4.48
ManufacturerHOLSET

Applications

2004- Cummins Truck, Industrial with QSB Tier-3 Engine

2004- Komatsu Grader with QSB Tier-3 Engine

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

This part comes with ONE YEAR unlimited mileage warranty.
