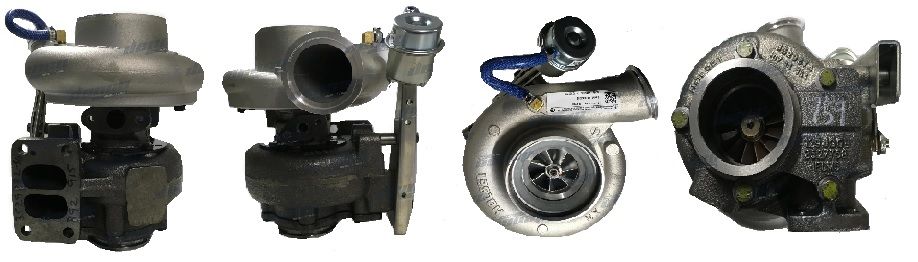

2004- Cummins Various, Bus HX35W Turbo 4041126

Item# turbo-various-cummins-TC-4041126
$1,332.11
Availability: Usually ships the next business day

Product Description


Part Number4041126
Previous Version2836065, 2836066
OE number2881717
Year2004-
Description Various, Bus, Industrial
CHRA4030895 (4030895H) $450.00 NEW IN STOCK, MADE IN USA
Source Reference4039966
Turbo ModelHX35W, HX35W-B77J70GM/A70Q86FE14PB-W
EngineQSB Tier-3
Engine ManufacturerCummins
FuelDiesel
Angle α (compressor housing) 195/285°
Angle β (turbine housing) 165°
Bearing Housing4038197 (3537112, 3593878)(Oil Cooled) $69.00 NEW IN STOCK
Turbine Wheel3519336 (Ind. 70.0 mm, Exd. 59.9 mm, 12 Blades)(1152301435) $124.00 NEW IN STOCK
Comp. Wheel4039432 (Ind. 54. mm, Exd. 83. mm, Trm 42, 8+8 Blades) $99.00 NEW IN STOCK
Back plate3530923 (1154351300) $21.48 NEW IN STOCK
Heat shield Number3519302 (1152301340) $14.00 NEW IN STOCK
Repair Kit3575169 (1153035750) $88.80 NEW IN STOCK
Actuator4030780
Gasket Kit4032496
Gasket (turbine outlet)3535001 (3922789)(Inox Steel) $21.64
ManufacturerHOLSET

Applications

2004- Cummins Truck, Various with QSB Tier-3 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
