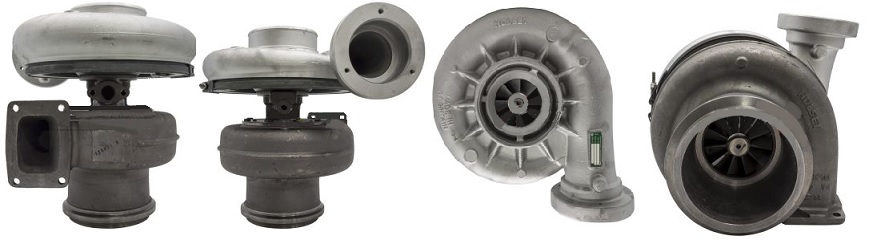

2000- Cummins Various Generator, Construction HX82 Turbo 3594195

2000- Cummins Various Generator, Construction HX82 Turbo 3594195
Item# turbo-various-cummins-TC-3594195
$2,163.00
Availability: Usually ships the next business day

Product Description


Part Number3594195
Previous versions3592880, 3592882, 3594196, 5323941
OE number4024887, 4024887RX, 4025027, 4025027RX, 4039052, 4039053
Description Various Power Gen Generator, Construction
CHRA4027351 (4032015) $983.00 IN STOCK
Turbo ModelHX82-B140J59XBG/A129T74YBF22G, HX82, HE800FG
EngineQSX15-G4
Engine Manufacturer Cummins
Bearing Housing3595037 (Oil Cooled) $920.31 NEW IN STOCK
Turbine Wheel3521033 (Ind. 129. mm, Exd. 95.4 mm, Trm 19, 11 Blades)(1152105435) $322.64 NEW IN STOCK
Comp. Wheel3593179 (Ind. 85.55 mm, Exd. 141.2 mm, Trm 10.05, 8+8 Blades, Superback) $175.00 NEW IN STOCK
Back plate3532593 (353259300) $165.00 NEW IN STOCK
Heat shield Number3536588 (353658800)(1153080340) $48.74 NEW IN STOCK
Repair Kit3545647 (316093, 4027967)(1152105756) $139.00 NEW IN STOCK
Turbine Housing3591301
Compressor Cover4045408
Plain Washer Set3504967 $6.88
Shim (0.010)3524418 (316069) $13.44
Gasket (turbine inlet)210521 (Inox Steel)
Gasket (oil outlet)210018 (129120,210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(Paper)(1900000025) $4.38
Gasket Kit4032459
ManufacturerHOLSET

Applications

2000- Cummins Various Generator, Construction with ISX Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
