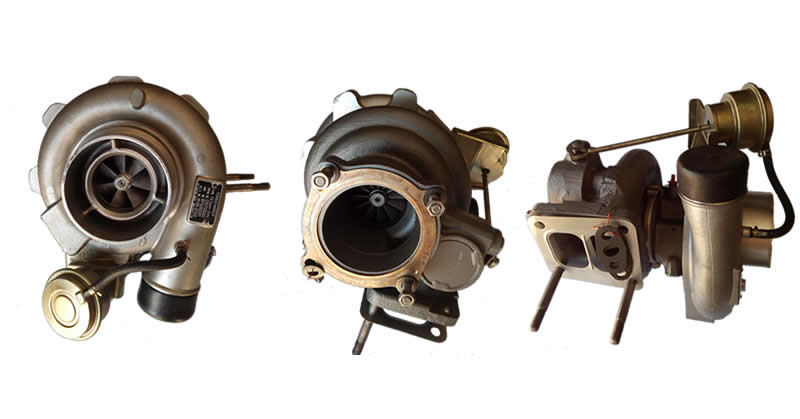

2006- Isuzu, GM Truck TE06H-24 Turbo 49185-01550

2006- Isuzu, GM Truck TE06H-24 Turbo 49185-01550
Item# turbo-truck-isuzu-TC-4918501550
$1,588.00
Availability: Usually ships the next business day

Product Description


Part Number49185-01550
Previous versions49185-01523, 4918501550, 49185-01560
OE number8-97602-220-1, 8-97602-223-1, 8976022201, 8976022231, 97602220, 97602223, 8943926363
Description Truck GM Topkick Chevrolet 6H LG4
CHRA49185-09210 (4918509210) $550.00 NEW IN STOCK, MADE IN JAPAN
Turbo ModelTE06H-24V-16.0, TE06H-24V
Engine6HK1XSL, 6HK1, 6HK1XR
Displacement7.3L, 7300 ccm, 6 Cylinders
Engine ManufacturerIsuzu
FuelDiesel
S/N030411046
Bearing Housing (Oil-Cooled) NEW IN STOCK
Turbine Wheel (Ind. 58.8 mm, Exd. 67.0 mm, Trm 11, 12 Blades) NEW IN STOCK
Compressor Wheel(Ind. 56. mm, Exd. 78. mm, Trm 13.2, 7+7 Blades, Superback) NEW IN STOCK
Flow Rate 800 CMF @ 1.0 Bar
Repair Kit49178-81100 (49178-89200) $116.00 NEW IN STOCK
Turbine Housing49185-15791 (49185-15702)
Compressor Housing49185-55281 (49185-55211)
Turbine Housing A/R 12 cm^2 with T4 Flange
Actuator49185-18643
Gasket Kit468186-0000 (3800196, 104097-0000) $22.61 NEW IN STOCK
ManufacturerMitsubishi
ConditionRebuilt

Applications

Isuzu, GM (Topkick) Truck With 6HK1 Engine

2005- GM, Chevy (HD) Topkick, Truck Series W3500, 6HK1XR

2006- GM, Chevy Duramax Isuzu 7.8L 6HK1XR

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
