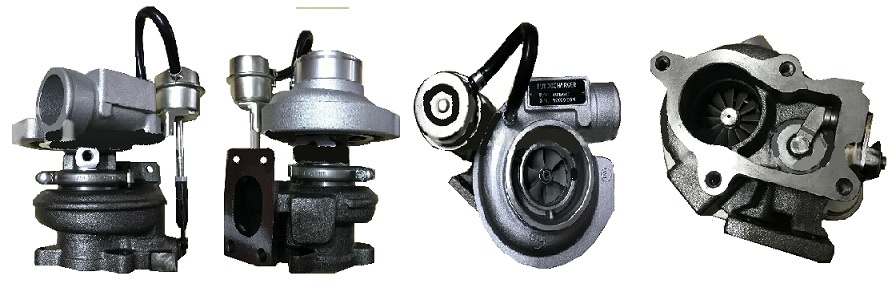

2007-04 Iveco CNH Backhoe Loader Agricultural HX27W Turbo 4046569

2007-04 Iveco CNH Backhoe Loader Agricultural HX27W Turbo 4046569
Item# turbo-agricultural-iveco-TC-4046569
$1,164.34
Availability: Usually ships the next business day

Product Description


Part Number4046569
Previous Part Number 2856701, 2856701R, 4033255, 403325500, 4033255H
OE number504248855, 504248855R
Year 2007-04
Description Agricultural CNH Backhoe Loader
Manufacturer Part Number 4046570
CHRA3593380 (3593380H, 49189-08052, 49189-08053)(1153027900, 1000020157) $300.00 NEW IN STOCK, MADE IN USA
Turbo Model HX27W
Engine NEF 4 Cylinders
Engine Manufacturer Iveco CNH
Angle α (compressor housing) 90°
Angle β (turbine housing)360°
Bearing Housing49189-26400 (1900011200E) $62.00 NEW IN STOCK
Turbine Wheel49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, 12 Blades)(1100030028) $90.00 NEW IN STOCK
Comp. Wheel49377-00017 (49189-43400)(Ind. 40.61 mm, Exd. 56.03 mm, 6+6 Blades, Superback)(1200016516) $49.62 NEW IN STOCK
Back plate49135-00044 (1800016016) $15.94 NEW IN STOCK
Heat shield Number49183-19300 (2030016085) $14.64 NEW IN STOCK
Repair Kit(5000050007) NEW IN STOCK
ManufacturerHOLSET

Applications

2007-04 Iveco CNH Backhoe Loader Agricultural CNH with NEF 4 Cylinders Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
