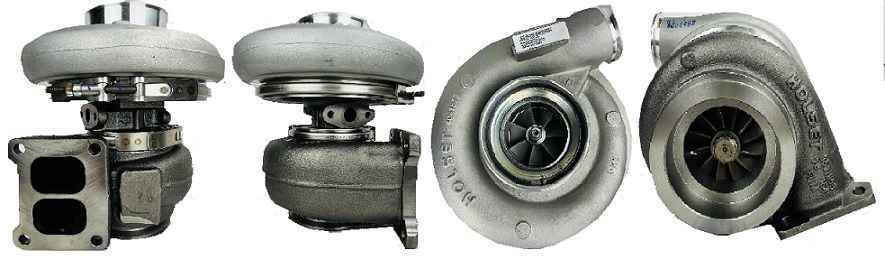

2005- Iveco Agricultural HX55 Turbo 4046020

Item# turbo-Agricultural-iveco-TC-4046020
$1,980.88
Availability: Usually ships the next business day

Product Description


Part Number4046020
Previous Part Number4033622H
OE number 504231411, 5042314110
Year 2005-
DescriptionIveco Agricultural
Manufacturer Part Number4046021
CHRA4032298 $950.00
Turbo Model HX55
Engine CURSOR 13, TIER 3
Engine Manufacturer Iveco
Displacement13.0L, 1300 ccm
Angle α (compressor housing)80°
Angle β (turbine housing) 270 °
Bearing Housing4039228 NEW IN STOCK
Turbine Wheel4039227 $681.76 NEW IN STOCK
Comp. Wheel4035468 (352809600)(403546800)(Ind. 67. mm, Exd. 99. mm, 7+7 Blades, Superback) $128.80 NEW IN STOCK
Back plate3528096 (1153055300) $21.82 NEW IN STOCK
Heat shield Number3529846 (3533038)(1153052340) $14.95 NEW IN STOCK
Repair Kit3575181 (3580762)(1153055750) $88.00 NEW IN STOCK
Gasket Kit3545576 (201049, 3519763) $15.3
ManufacturerHOLSET

Applications

2005- Iveco Agricultural with Cursor 13 Tier-3 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
