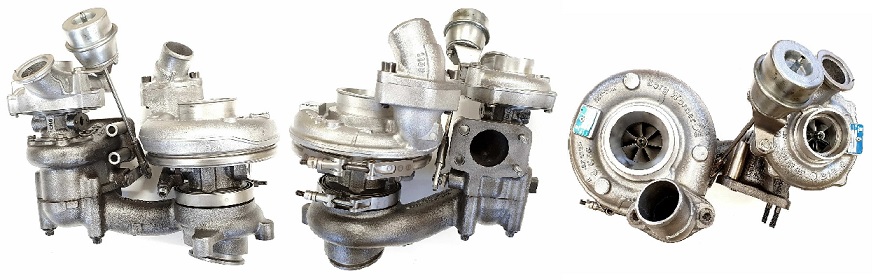

2001-11 Iveco Truck LDV R2S K03 + B2 Turbo 10009880057

2001-11 Iveco Truck LDV R2S K03 + B2 Turbo 10009880057
Item# turbo-truck-iveco-TC-10009880057
$2,406.00
Availability: Usually ships the next business day

Product Description


Part Number10009880057
Previous Part Number1000-970-0057, 10009880182
OE Number504382355, 5801888825
Year2001-11
Description Iveco Truck LDV
Manufacturer Part Number1000-970-0057, 10009700057, 10009700182
Turbo ModelK03-67 + 1265-0, R2S K03 + B2
HI Pressure (Small Turbo) 53039880167, 5303-970-0167
CHRA HI Pressure (Small Turbo) 53037100553 (5303-710-0553)(1000030181T)
CHRA HI Pressure (Small Turbo) 53037100553 (5303-710-0553)(1302003953, 1000030181T, 200035003) $300.00 NEW IN STOCK, MADE IN UK
Bearing Housing53041510022 (Oil Cooled)(1302003451, 203060008) NEW IN STOCK
Turbine Wheel53031205063 (Ind. 40.3 mm, Exd. 45. mm, Trm 7.7, 12 Blades)(1302003448, 201050009) NEW IN STOCK
Comp. Wheel 53041232043 53041232051 (Ind. 37.9 mm, Exd. 51.96 mm, 11.16, Trm 5.8, 6+6 Blades, Superback)(1302004403, 202990038) $48.00 NEW IN STOCK
Back plate53041515731 (1302003312, 204020027) NEW IN STOCK
Heat shield Number (1302003346, 53031652000 ,206030001) $14.82 NEW IN STOCK
Repair Kit (Major)(1303045755, 209040005) $98.50 NEW IN STOCK
Low Pressure (Large Turbo)12659880000, 1265-988-0000
CHRA Low Pressure (Large Turbo) 12657100500 (1265-710-0500)(1000030237B) $822.64
Bearing Housing12001500022 (Oil Cooled) NEW IN STOCK
Turbine Wheel12651205003 (Ind. 64.6 mm, Exd. 54.6 mm, Trm 11.16, 12 Blades)(1332002437, 1100016420) $118.90 NEW IN STOCK
Comp. Wheel 10711232001 (Ind. 50.35 mm, Exd. 50.5 mm, Trm 10.38, 7+7 Blades, Superback)(1301026401) $68.89 NEW IN STOCK
Back plate (1332002300) $28.86 NEW IN STOCK
Heat shield Number(1332002341) $19.45 NEW IN STOCK
Repair Kit(Major)(1332002758) $79.69 NEW IN STOCK
EngineF1CE3481C, F1C Euro 5
Engine ManufacturerIveco
ModelLDV
Displacement3.0L, 3000 ccm, 4 Cylinders
KW150/168/201/204/205
RPM Max 1900
TypeR2S = Regulated 2-Stage
Components10009880057 = 53039880167 + 12659880000
ManufacturerBorg Warner - 3K - Schwitzer, BWTS DE

Applications

2001-11 Iveco Truck Bi-Turbo with F1C Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
