Home > Force Inductions > TURBO CHARGERS > INDUSTRIAL > JCB > 2007- JCB Industrial GT2560S Turbo 773125-0005

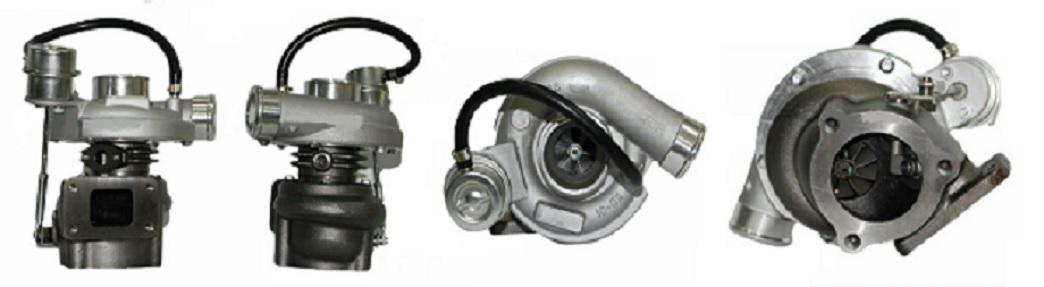

2007- JCB Industrial GT2560S Turbo 773125-0005

2007- JCB Industrial GT2560S Turbo 773125-0005
Item# turbo-industrial-jcb-TC-7731250005
$1,393.04
Availability: Usually ships the next business day

Product Description


Part Number773125-5005S
Previous Version 773125-0001, 773125-0003, 773125-0005, 773125-5
OE number320/06077, 32006077
Year 2007-
DescriptionVarious Construction, Industrial
CHRA433289-0367 (433289-5367S) $665.98 NEW IN STOCK
Turbo Model GT2560S
Engine Dieselmax TCAE, Dieselmax TCAE Euro-3
Engine Manufacturer JCB
Displacement 4.4L, 4400 ccm, 4 Cylinders
KW 97/108
RPM Max 2200
Fuel Diesel
Angle α (compressor housing)317.5º
Angle β (turbine housing)342.5º
Bearing Housing713782-0019 (Oil Cooled)
Turbine Wheel434717-0051 (434717-0043)(Ind. 44.25 mm, Exd. 54. mm, Trm 7.2, 12 Blades)
Comp. Wheel737692-0004 (Ind. 39.7 mm, Exd. 56. mm, Trm 8.0, 6+6 Blades, Superback)
Back plate726125-0003
Heat shield Number434686-0001 $12.42 NEW IN STOCK
Repair Kit732252-0001 $97.60 NEW IN STOCK
Turbine Housing760428-0005
Compressor Cover773863-0001
ActuatorN/A
Settings Waste gate (pressure)2.210-2.270 bar
Settings Waste gate (lifting rod)1.00 mm
Gasket (turbine inlet)210852 (Inox Steel)
Gasket (oil outlet)210553 (Paper)
Replaced By802455-0001
NoteNot interchangeable with 773125-0006
ManufacturerHoneywell-Garrett

Applications

2007- JCB Industrial Various with Dieselmax TCAE Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
