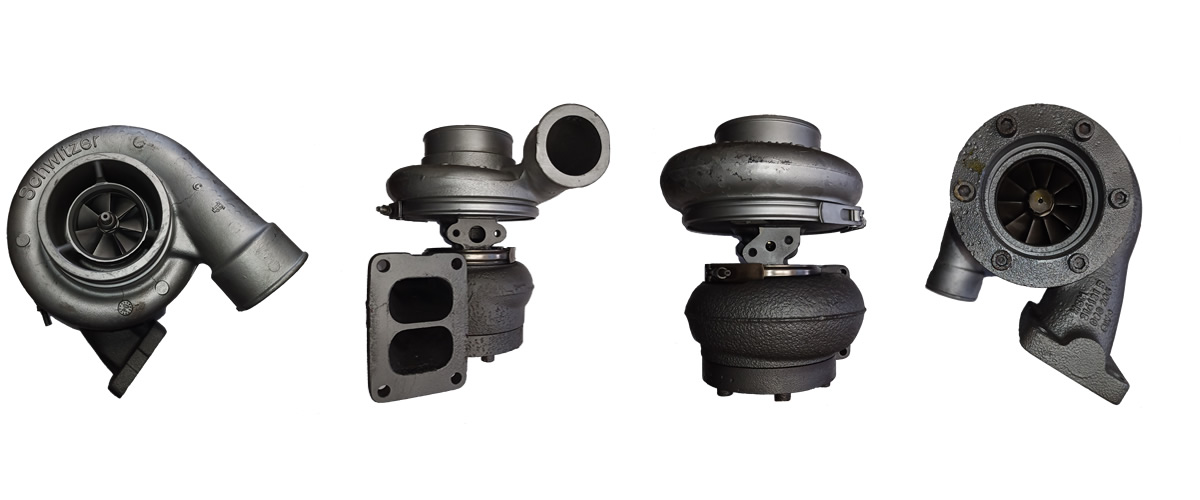

2003-04 Komatsu WA480-Front End Loader S400 Turbo 319460

2003-04 Komatsu WA480-Front End Loader S400 Turbo 319460
Item# turbo-earth-moving-komatsu-TC-319460
$1,986.27
Availability: Usually ships the next business day

Product Description


Part Number319460
Previous Version319448
OE number6156818150, 6156-818150
Year2003-04
Description WA480-Front End Loader
CHRA318715 (318715R, 14877100004) $790.24 NEW IN STOCK
Turbo Model S400
Engine SAA6D125E-3
Engine Manufacturer Komatsu
Displacement 11.0L, 11000 ccm
KW 221/297
RPM Max 2000
Fuel Diesel
Angle α (compressor housing)92.5°
Angle β (turbine housing)17.5°
Bearing Housing315475 (Oil Cooled) $292.86 NEW IN STOCK
Turbine Wheel168146 (Ind. 77.86 mm, Exd. 87.48 mm, 10 Blades) $125.88 NEW IN STOCK
Comp. Wheel318677 (Ind. 66.03 mm, Exd. 91.34 mm, 7+7 Blades) $248.83 NEW IN STOCK
Back plate316010 (151242)(1253400300) $19.38 NEW IN STOCK
Heat shield Number315964 (197394, 317590) $17.45 NEW IN STOCK
Repair Kit318396 (318397)(1253400750) $139.00 NEW IN STOCK
Turbine Housing318679 (319459) $476.24
Compressor Cover318678
Gasket (turbine inlet)132040 (9749, 1S4295, 202873, 205396, 3500683, 210017-0000, 409038-0000)(1900000003)(417382 Replaced by 20784537)(Inox Steel) $13.20
Gasket (turbine outlet)210222 (Stainless Steel)
Gasket (oil outlet)210060 (311585, 148062)(2475013) $4.48
Gasket (oil inlet)129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) $4.38
Gasket Kit318417 $17.44
ManufacturerBorg Warner - 3K - Schwitzer

Applications

2003-04 Komatsu WA480-Front End Loader with SAA6D125E-3 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
