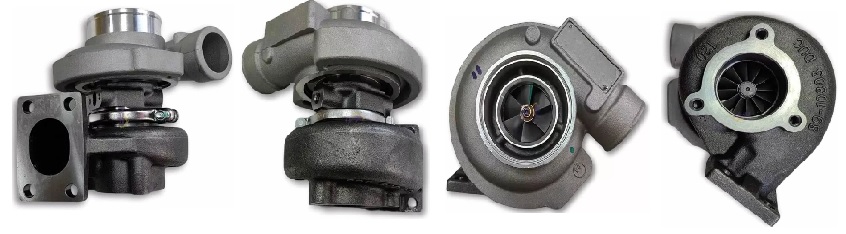

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2003- Komatsu BHL Various HX25 Turbo 4037187
Product Description
| Part Number | 4037187 |
| Previous Part Number | 2856090, 2856090R, 4033095, 4033095H, 4037188 |
| Previous Version | 504085543, 504085543R, 5452222, 5452222RX |
| Year | 2003- |
| Description | Various KOMATSU BHL, Iveco Back Hoe Loader, Front Loader |
| Manufacturer Part Number | 4037188 |
| CHRA | 3539071 (3539071H)(1153025701, 1153025901)(49189-08010, 49189-09620)(1153025901, 1000020153) $298.00 NEW IN STOCK, MADE IN USA |
| Turbo Model | HX25-TB11H/A11CXL, HX25 |
| Engine Manufacturer | Iveco, Komatsu |
| Engine | 4 CYL, 2 VAL, LTC, 2V NEF |
| Displacement | 4 Cylinders |
| Fuel | Diesel |
| KW | 85 |
| Angle α (compressor housing) | 350° |
| Angle β (turbine housing) | 55° |
| Bearing Housing | 49189-26400 (Oil Cooled)(1153025450, 1900011200E) NEW IN STOCK |
| Turbine Wheel | 49189-30100 (Ind. 51.96 mm, Exd. 45.67 mm, Trm 8.5, 12 Blades)(1153025435, 1100030028) $90.00 NEW IN STOCK |
| Comp. Wheel | (Ind. 38.76 mm, Exd. 55.88 mm, Trm 6.35, 16+6 blades, Superback)(1153025400, 1200016491) $183.02 NEW IN STOCK |
| Back plate | 49135-00044 (S/Back)(1153025300, 1800016016) $15.94 NEW IN STOCK |
| Heat shield Number | 49183-19300 (11530253408, 2030016049) $14.64 NEW IN STOCK |
| Repair Kit | (1153025751, 5000050007) $69.00 NEW IN STOCK |
| Gasket (turbine inlet) | 210218 (Stainless Steel) $24.90 |
| Gasket turbine outlet | 210889 (Stainless Steel) $39.90 |
| Gasket oil outlet | 210243 (Gasket paper) $2.00 |
| Gasket Kit | 215255 (2090505019) |
| Manufacturer | HOLSET |
2003- Komatsu Various KOMATSU BHL With 4 CYL, 2 VAL, LTC Engine 2003- Iveco Back Hoe Loader With 4 CYL, 2 VAL, LTC Engine There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
