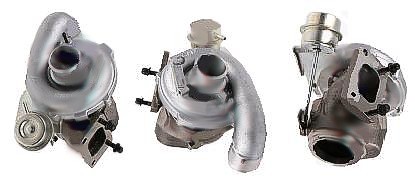

2002- Lancia Thesis GT2052ELS Turbo 714334-0001

2002- Lancia Thesis GT2052ELS Turbo 714334-0001
Item# turbo-car-lancia-TC-7143340001
$1,990.00
Availability: Usually ships the next business day

Product Description


Part Number714334-5001S
Previous Version714334-0001, 714334-1, 714334-0002
OE number 467916880, 71723498
Year2002-
Description Lancia Thesis 20V
CHRA433352-0046 (433352-5046S) $350.00 NEW IN STOCK
Turbo ModelGT20, GT2052ELS
Engine M.648.19
Engine Manufacturer Fiat
Displacement 2.0L, 5 Cyl, 1998 ccm
KW185
RPM 5750
FuelDiesel
Angle α (compressor housing 17.3°
Angle β (turbine housing) 210°
Bearing Housing434578-0005 $82.88 (W/Cooled) NEW IN STOCK
Turbine Wheel434715-0013/434715-0027/434715-0039 (Slender shaft/ EX.40.00/ IND.47.0/ TIP.6.30/ Blades 12) NEW IN STOCK
Comp. Wheel702492-0001 NEW IN STOCK
Back plate701335-0004 NEW IN STOCK
Heat shield Number N/A
Repair Kit732252-0001 $97.60 NEW IN STOCK
Turbine Housing702361-0008
Compressor Cover433102-0021/716709-0001
Actuator434502-0009
Settings Waste gate (pressure)0.640-0.750 Bar
Settings Waste gate (lift shaft) 4.00 mm
Gasket (oil outlet)210243 (Paper) $4.50
Gasket (turbine Inlet)210360 (Stainless Steel)
ManufacturerHoneywell-Garrett

Applications

2002- Lancia Theses 20V with M.648.19 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
