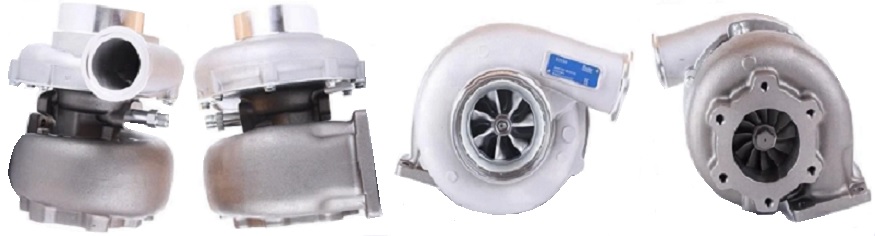

2000-08 Man 414, F2000 Truck HX50 Turbo 3593894

Item# turbo-truck-man-TC-3593894
$1,574.94
Availability: Usually ships the next business day

Product Description


Part Number3593894
Previous versions3593895, 3796920, 4033286, 4033286H, 5331-988-6710
OE number 51.09100-7462, 51.09100-7463, 51091007462, 51091007463
Year 2000-
Description F2000 TRUCK
Manufacturer Part Number4033286, 3593895, 5331-970-6710
CHRA4027217 (4027217H) $550.00 NEW IN STOCK
Turbo ModelHX50-D9881CM/P25W11, HX50
Engine D2866LF31, D2866LF31(4V)
Power404/409
Displacement 12.0L, 11970 ccm
Engine Manufacturer MAN
FuelDiesel
Angle α (compressor housing)315º
Angle β (turbine housing)140°
Bearing Housing3592089 (Oil Cooled) $69.00 NEW IN STOCK
Turbine Wheel3534287 (Ind. 86. mm, Exd. 77.03 mm, Trm 13.41, 12 Blades)(1153050436, 1100016122) $148.00 NEW IN STOCK
Comp. Wheel3596134 (Ind. 69.01 mm, Exd. 99. mm, Trm 13.0, 7+7 Blades, Superback) $68.00 NEW IN STOCK
Back plate3528096 (1153055300, 1800016024) $21.48 NEW IN STOCK
Heat shield Number3529846 (3533038)(1153052340, 2030016003) $13.22 NEW IN STOCK
Repair Kit3545627 (3545653, 3575015, 876991, 876896)(1152302750, 5000020028B) $68.80 NEW IN STOCK
Turbine Housing3592091
Compressor Cover3593576
Gasket Kit3545769 (215301, 1900100051, 2090505390) $16.40
Replaced by53319886710
ManufacturerHOLSET

Applications

2000-08 Man 414, F2000 Truck with D2866LF31 Engine

Core Charge

There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
