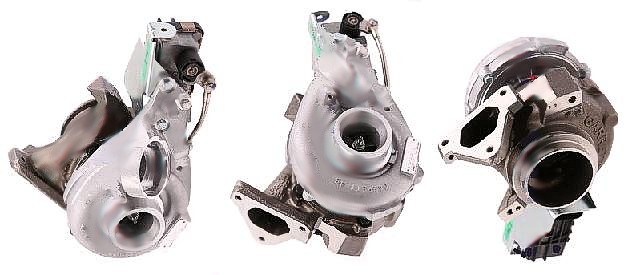

2002-08 Mercedes Benz E, C-Class 220 CDI GT1A852VK Turbo 727461-0007

2002-08 Mercedes Benz E, C-Class 220 CDI GT1A852VK Turbo 727461-0007
Item# turbo-car-mercedes-TC-7274610007
$1,180.00
Availability: Usually ships the next business day

Product Description


Part Number727461-5007S
Previous Version727461-0001, 727461-0002, 727461-0003, 727461-0004, 727461-0005, 727461-0006, 727461-0007, 727461-6, 727461-7
OE numberA6460960499, A6460961499, A6460960099, A6460900080, 6460960499, 6460961499, 6460960099, 6460900080
Year2002-07
DescriptionMercedes C200 CDI E220 CDI / E Class (New) C200 CDI C220 CDI E200 CDI
CHRA703890-0096 (703890-5096S)(1102018903, 1000010417) $300.00 NEW IN STOCK, MADE IN USA
Turbo ModelGT18, GT18V, GT1852V, GTA1852VK
EngineOM646, OM646 Euro-3
Engine Manufacturer Mercedes Benz
Displacement2.15L, 2148 ccm, 4 Cylinders
KW85/105/143
RPM4200
FuelDiesel
Bearing Housing722282-0049 (Oil Cooled)(1102018453, 1900011090B) $75.86 NEW IN STOCK
Turbine Wheel704580-0007 (704580-0003, 704580-0005, 704580-0008)(Ind. 44.19 mm, Exd. 39.67 mm, Trm 8.5, 9 Blades)(1102017435, 1100030046) $75.89 NEW IN STOCK
Comp. Wheel436131-0021 (436131-0005, 436131-0050, 702492-0001, 702492-0004, 702492-0040)(Ind. 38.7 mm, Exd. 52. mm, Trm 4.19, 6+6 Blades, Superback)(1102015406, 1200030118) $42.76 NEW IN STOCK
Back plate701335-0008 (701335-0003, 701335-0011, 703682-0029)(1300016024, 1102015302) $24.99 NEW IN STOCK
Heat shield Number433112-0001 (1102015342, 2030016021) $15.69 NEW IN STOCK
Thrust Kit732248-0003 $44.80 NEW IN STOCK
Repair Kit732252-0001 (1102015782, 5000010066H) $66.80 NEW IN STOCK
Nozzle Ring Assembly704013-0013 (717505-0001, 704014-0017, 717505-0016)(1102017831, 3000016016) $127.44 NEW IN STOCK
Turbine Housing AR REA
Electronic Actuator(G271) $183.27
Gasket (turbine inlet)210378 (Stainless Steel)
Gasket (oil outlet)210243 (Paper) $3.47
Gasket Kit215640 (1900100016, 2090505156) $16.20
NoteREA = Rotary Electronic Actuator, Euro III spec. Electric actuator
ManufacturerHoneywell-Garrett

Applications

2002-08 Mercedes C-Class 220 CDI (W203) Engine OM646 Euro-3

2003-07 Mercedes E-Class 220 CDI (W211) Engine OM646 Euro-3

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
