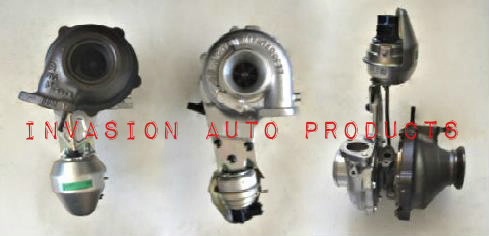

2007-15 Opel Insignia 2.0L CDTI Ecotec GTB1549V Turbo 786137-0001

2007-15 Opel Insignia 2.0L CDTI Ecotec GTB1549V Turbo 786137-0001
Item# turbo-car-opel-TC-7861375001S
$1,290.00
Availability: Usually ships the next business day

Product Description


Part Number786137-5001S
Previous Version786137-0001, 786137-1, 786137-5003S, 786137-3
OE Number60335, 1104228, 128178, 55566448, 55570748, 55581063, 5860381, 5860560
Year2007-15
DescriptionOpel, Vauxhall Zafira, Astra, Insignia 2.0L CDTI Ecotec, Chevrolet Cruze Diesel
CHRA(1102015953, 1000010403) $325.00 NEW IN STOCK, MADE IN UK
Turbo Model GTB1549V
EngineA20DTH Euro-5, A20DTH, A 20 DTE
Engine Manufacturer GM
Displacement 2.0L, 1956 ccm, 4 Cylinders
KW 118/160 HP
RPM Max4000
FuelDiesel
Bearing Housing(Oil Cooled)(1102015471, 1900011303B) $79.00 NEW IN STOCK
Turbine Wheel(Ind. 37.6 mm, Exd. 41. mm, Trm 9.29, 9 Blades)(1102015449, 1100016322B) $90.48 NEW IN STOCK
Comp. Wheel784361-0003 (735492-0003)(Ind. 34.59 mm, Exd. 49. mm, Trm 8., 6+6 Blades, Superback)(1102017402, 1200016350) $37.00 NEW IN STOCK
Back plate763470-0004 (1102320303, 1300016081) $17.56 NEW IN STOCK
Heat shield Number (1102015346, 2030016067) $43.37 NEW IN STOCK
Repair Kit(1102017785, 5000010066H) $89.60 NEW IN STOCK
Nozzle Ring Assembly(1102017838, 3000016024B) $187.60 NEW IN STOCK
Nozzle Ring Basket(1102218190, 3400016456B) $145.00 NEW IN STOCK
Turbine Housing ARVNT3
Electronic Actuator(1102215380, 2063050794) $198.00 NEW IN STOCK
Gasket Kit215340 (8272169997, RGR827-216-9997, RGR8272169997)(1900100605, 2090505552) $28.00 NEW IN STOCK
Gasket (turbine inlet)210954
Gasket (oil outlet)211119 (55590052)
Gasket (turbine outlet) (compressor housing)210955
Replaced by786137-0003
ManufacturerHoneywell-Garrett

Applications

2007-15 Opel, Vauxhall Zafira, Astra, Insignia 2.0L CDTI Ecotec with A20DTH Engine

2012-15 Chevrolet Cruze Diesel 2.0L CDTI Ecotec with A20DTH Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
