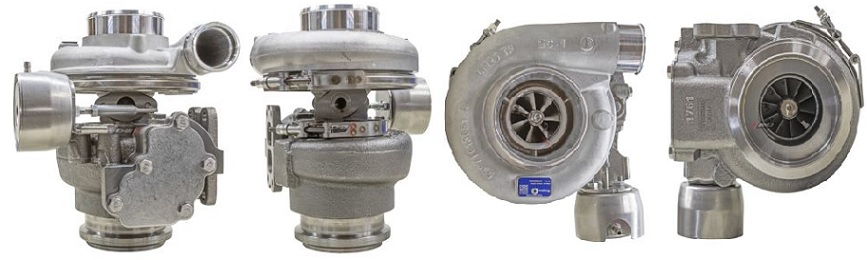

Part Number | 10709880006 |
Previous Version | 1070-988-0006, 1070 988 0006 |
OE Number | 10R-9580, 10R9580, 2674A604, 2674A608, 315-9810, 3159810 |
Year | 2005- |
Description | Agricultural Tractor with 1106D |
Manufacturer Part Number | 10701970006, 1070-197-0006 |
CHRA | 12707100003 (1270-710-0003) $965.33 NEW IN STOCK |
Turbo Model | B2-3067NRAKB0.70DK1 |
Engine Model | 1106D, 1106D (Vista) |
Engine Manufacturer | Perkins |
Fuel | Diesel |
Displacement | 6.0L, 5990 ccm |
KW | 168/229 |
RPM | 2200 |
Angle α (compressor housing) | 0° |
Angle β (turbine housing) | 0° |
Bearing Housing | 12001501005 (Oil Cooled)(1900011214B) $112.57 NEW IN STOCK |
Turbine Wheel | 168431 (Ind. 69.6 mm, Exd. 56.8 mm, Trm 7, 10 Blades)(1100016216) $174.03 NEW IN STOCK |
Comp. Wheel (milled titanium) | 12771232002 (Ind. 51.7 mm, Exd. 78.61 mm, Trm 5.4, 7+7 Blades, Superback) $144.90 NEW IN STOCK |
Back plate | 12001523000 (12001523001, 1800016062) $38.51 NEW IN STOCK |
Heat shield Number | 12001652000 (2030016105) $25.88 NEW IN STOCK |
Repair Kit | 12007110000 (1332002750, 5000030125) $158.78 NEW IN STOCK |
Turbine Housing | 10701009001 (12701009004) |
Compressor Cover | 53271013304 |
Turbine Housing AR | 0.7 |
Actuator | 58201104280 (2061016835) $124.41 NEW IN STOCK $68.74 |
Gasket Kit | 318419 (318420, 3545575, 3575687, 3580734, 4027643, 4032401, 4032403, 4032407, 4032438, 4032545, 7C7431, 0451073, 2.505.134, 2505134) $16.88 |
Manufacturer | Borg Warner - 3K - Schwitzer, BWTS UK |
