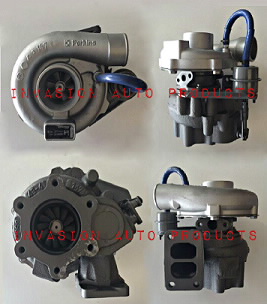

2002- Perkins Agricultural Tractor GT3571S Turbo 709942-0007

2002- Perkins Agricultural Tractor GT3571S Turbo 709942-0007
Item# turbo-agricultural-perkins-TC-7099420007
$1,675.00
Availability: Usually ships the next business day

Product Description


Part Number709942-5007S
Previous Version709942-0007, 709942-7
OE number10R4752, 220-8182, 2208182, 2674A348
Year2002-
Description Agricultural
CHRA709947-0004 (709947-5004S, 709947-0002)(1000010514, 1000010390) $350.00 NEW IN STOCK, MADE IN USA
Turbo Model GT3571S
EngineVista 6, Vista 6 Tier 2, 3056E, CP-563E, CP-573E, CP-663E, CS-563E, CS-573E, CS-583E, CS-663E, CS-683E
Engine ManufacturerPerkins
Prefix356, BWE, CNT, ASY, ASZ, ASF, DAF, ASA, CNG, MCP, PAH, CEB, CNN, CNX, DAJ, ASB, DAG, ASG, DAD
Displacement6.0L, 6000 ccm, 6 Cylinders
RPM Max1400
FuelDiesel
Angle α (compressor housing) 130°
Angle β (turbine housing)15°
Bearing Housing447535-0003 (Oil-cooled)(1900011181) $65.00 NEW IN STOCK
Turbine Wheel711242-0001 (711244-0003) (Ind. 68. mm, Exd. 57.7 mm, Trm 9.57, 12 Blades)(1100016326) $116.82 NEW IN STOCK
Comp. Wheel434244-0007 (434244-0019)(Ind. 49.25 mm, Exd. 71. mm, Trm 4.7, 6+6 Blades, Superback)(1200016594, 1200016459Z) $161.00 NEW IN STOCK
Back plate436040-0001 (1102035300, 1300016138) $21.33 NEW IN STOCK
Heat shield Number447553-0005 (447553-0006)(2030016048) $12.80 NEW IN STOCK
Repair Kit 709147-0002 (709147-0001)(1102032751, 5000010173) $99.60 NEW IN STOCK
Turbine Housing709948-0002
Compressor Cover436163-0041
Actuator434133-0028
Gasket (turbine inlet)409039-0000 (409039-0001, 210019, 2405022)(Inox Steel)(1900000006) $13.52
Gasket (turbine outlet)210551(Inox Steel) $13.52
Gasket oil inlet210019 (409266-0004, 210019-0000, 201049, 129119, 409267-0002, 409266-0003)(Paper)(1900000035) $4.40
Gasket (oil outlet)210060 (409267-0003, 409267-0002, 129120, 1S4810, 201048, 3709738, 3500682, 3519763, 210060-0000, 51914, 148062, 311585)(1900000025) $3.48
Gasket Kit 215028 (215130)(XJTC11319)(1900100300, 2090505315) $26.46
ManufacturerHoneywell-Garrett

Applications

2002- Perkins Agricultural Tractor with Vista 6 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
