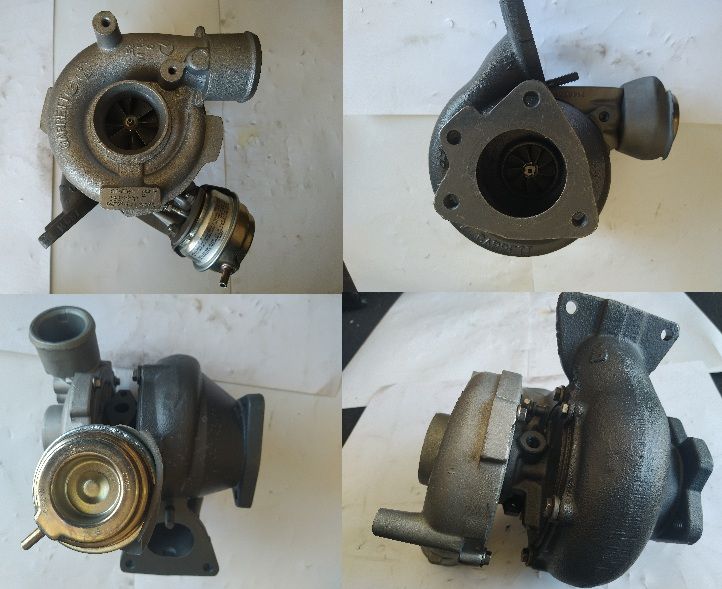

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2004- Volvo Penta Marine GT2056V Turbo 763263-0003
Product Description
| Part Number | 763263-5003S |
| Previous Version | 763263-0002, 763263-0003, 763263-2, 763263-3, 763263-0004, 763263-0006 |
| OE number | 3802145 to 3819920, 3847393, 3847393.0, 21354008, 3801271, 3801270, 3847393 |
| Year | 2004- |
| Description | Ship, Marine |
| Manufacturer Part Number | 53279706733, 5327-970-6733 |
| CHRA | 703891-0199 (703891-5199S, 703891-0200, 703891-0155)(1102120902, 1000010521) $325.00 NEW IN STOCK, MADE IN UK |
| Turbo Model | GT2056V, GTA2056V |
| Engine | 5D, D3 |
| Engine Code | D3-200A-D, D3-200A-E, D3-200I-D, D3-200I-E |
| Engine Manufacturer | Volvo - Penta |
| Displacement | 2.5L, 2500 ccm, 5 Cylinders |
| Fuel | Diesel |
| KW | 140/188/190/197 |
| RPM Max | 4000 |
| Engine code | D5252T |
| Bearing Housing | (Oil Cooled)(1102022451, 1900011305) $74.81 NEW IN STOCK |
| Turbine Wheel | 408492-0023 (408492-0012, 408492-0016, 408492-0022)(9Y8268, 6N4606)(Ind. 111.4 mm, Exd. 87.73 mm, Trm 13.97, 11 Blades) $209.00 NEW IN STOCK |
| Comp. Wheel | (Ind. 42.5 mm, Exd. 47. mm, Trm 8.2, 9 Blades)(1102020434, 1100030019) $77.60 NEW IN STOCK |
| Back plate | (1102022400, 1200016045) $37.55 NEW IN STOCK |
| Heat shield Number | (1102322301, 1300011021) $17.20 NEW IN STOCK |
| Repair Kit | (1102015783, 5000010066) $91.53 NEW IN STOCK |
| Nozzle Ring | (1102017833, 3000016014) $159.52 NEW IN STOCK |
| Gasket (turbine inlet) | 210608 (Inox Steel) |
| Gasket (turbine outlet) | 210609 (Inox Steel) |
| Gasket (oil outlet) | 210243 (Paper) |
| Gasket Kit | (1900100334) $18.00 |
| Actuator | Pneumatic |
| Turbine Housing AR | VNT2 |
| NOTE | Marinised version of Volvo D5 car engine. Turbo is NOT interchangeable |
| Manufacturer | Honeywell-Garrett |
2004- Volvo Penta Marine with 5D Engine There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
