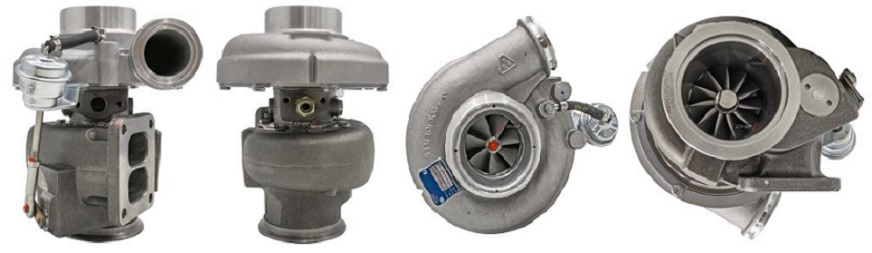

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)2003-10 Volvo Penta Marine K31 Turbo 53319987130
Product Description
| Part Number | 53319987130 |
| Previous Version | 5331-998-7130, 5331 998 7130, 5331-988-7130, 5331 988 7130 |
| OE number | (superseded from 3838871), 3808049,3842676, 3801114, 3801115, 3802148, 4671631110 |
| Year | 2003-10 |
| Description | Ship |
| Manufacturer Part Number | 53319707130, 5331-970-7130, 5331 970 7130 |
| CHRA | 53317100020 (5331-710-0020, 5331-710-0040) $988.00 |
| Turbo Model | K31-3971QYAKB/20.90, K31-3971QYAKB20.90DCAWD |
| Engine | P1025, D9A2A, D9A-MH, D9A2B MH, P1025, D9-575 |
| Engine Manufacturer | Volvo Penta |
| Displacement | 9.36L, 93600 ccm |
| KW | 420/571/575 HP |
| RPM Max | 1860 |
| Fuel | Diesel |
| Angle α (compressor housing) | 88/92° |
| Angle β (turbine housing) | 60° |
| Bearing Housing | 53291500024 (53291500008)(Oil Cooled) NEW IN STOCK |
| Turbine Wheel | 53311205012 (53311205003, 53311205004)(Ind. 85.97 mm, Exd. 74.77 mm, Trm 11.95, 9 Blades)(1100016178) $136.00 NEW IN STOCK |
| Comp. Wheel | 53331232015 (53331232014)(Ind. 71. mm, Exd. 102. mm, Trm 6.05, 7+7 Blades, Superback) $197.73 NEW IN STOCK |
| Back plate | 53291523003 (53291523001)(204290001) $28.75 NEW IN STOCK |
| Heat shield Number | 53311652001 $16.72 NEW IN STOCK |
| Repair Kit | 53317110005 (53317110003, 53317110007)(Major)(1301031755) $175.07 NEW IN STOCK | Turbine Housing | 53311007200 |
| Compressor Cover | 53311013116 |
| Turbine Housing AR | 20 |
| Settings Waste gate (pressure) | 2.55 bar |
| Settings Waste gate (lift shaft) | 1.05 mm |
| Gasket (turbine inlet) | 210648 |
| Gasket (turbine outlet) | 210239 |
| Gasket (oil Inlet) | 948883 |
| Gasket (oil outlet) | 210060 420643 |
| Gasket Kit | 215200 $49.38 |
| Replaced by | 807425, 945408, 945444, 953049, 3818865, 3819499, 3841925, 3843941, 3801115 |
| NOTE | Intercooler, water cooled bearing housing, restricted to Volvo/Volvo-Penta |
| Manufacturer | Borg Warner - 3K - Schwitzer, BWTS DE |
2003-10 Volvo Penta Ship with P1025 Engine 2003-10 Dereco Truck with P1025 Engine There is a $600.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
Core Charge
Warranty
