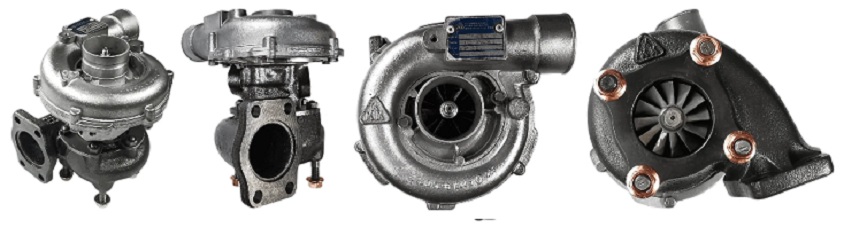

For Phone order call 818-506-8005 1-877-42TURBO(TOLL Free)1983-01 Audi quattro k26 Turbo 53269886416
Product Description
| Part Number | 53269886416 |
| Previous Version | 5326-988-6416, 5326 988 6416, 53269886403 |
| OE number | 035145702C, 035145702CX, 035145702CV, 035145703E, 035145703EV, 035145702L, 035145702LX, 035145702LV, 035145703C |
| Year | 1983-01 |
| Description | Audi quattro |
| Manufacturer Part Number | 53269706416, 5326-970-6416, 53269706403 |
| CHRA | 53267100502 (5326-710-0502) $858.79 |
| Turbo Model | K26-2664G6.91 |
| Displacement | 2.14/2.26L, 2144/2226 ccm |
| KW | 147/200 |
| RPM Max | 5500 |
| Angle α (compressor housing) | 125.5º |
| Angle β (turbine housing) | 130.5º |
| Bearing Housing | 53261500017 (Oil Cooled) NEW IN STOCK |
| Turbine Wheel | 53261205002 (53261202107, 53261202119)(Ind. 54.54 mm, Exd. 64.25 mm, Trm 10.02, 12 Blades) $355.01 |
| Comp. Wheel | 536261232037 (53261232016, 53261232006, 53261232035)(Ind. 41.92 mm, Exd. 60. mm, Trm 5.74, 6+6 Blades, Super Back) $95.45 NEW IN STOCK |
| Back plate | 53261515701 $37.51 NEW IN STOCK |
| Heat shield Number | 53261652005 (53261652007) $22.65 NEW IN STOCK |
| Repair Kit | 53267110010 (53267110021, 53267110036) $79.00 NEW IN STOCK |
| Turbine Housing | 53261007310 (53261006326) $613.28 |
| Compressor Cover | 53261005005 |
| Turbine Housing AR | 6 |
| NOTE | Inter cooler; exchange no. 035145702CX; no replacement turbo available |
| Replaced By | 53269886416, 53269886411 |
| Manufacturer | Borg Warner - 3K - Schwitzer |
1985-88 Audi 100 2.2L E Turbo Engine MC 1988-90 Audi 100 2.2L E Turbo Engine 2B 1988-90 Audi 100 2.2L E Turbo Engine 1B 1979-82 Audi 200 5 Cyl Turbo Turbo Engine WJ 1985-88 Audi 200 2.2L E Turbo Engine MC 1985-88 Audi 200 2.2L E Turbo Engine 2B 1988-90 Audi 200 2.2L E Turbo Engine 1B 1987-89 Audi Quattro 2.2 Turbo (85) Engine MB/1B 5 Cyl. There is a $300.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received. This part comes with ONE YEAR unlimited mileage warranty.Applications
