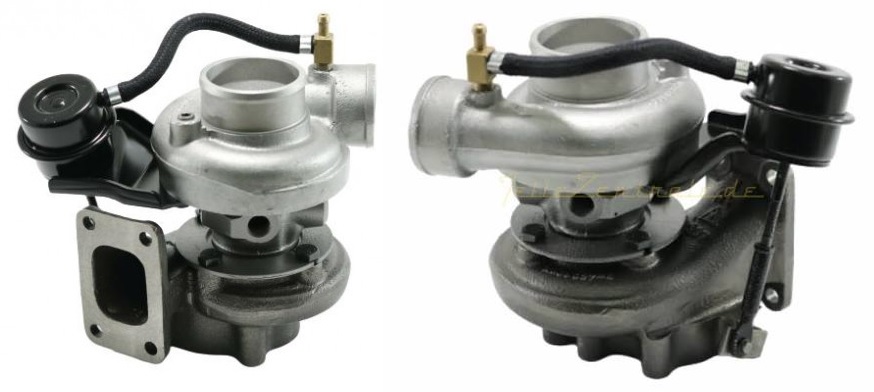

1983-99 Lancia TB0225 Turbo 466728-0001

Item# turbo-car-lancia-TC-4667280001
$1,385.28
Availability: Usually ships the next business day

Product Description


Part Number466728-5001S
Previous versions466728-0001, 466728-1
OE number75419450, 75970610
Year 1983-99
DescriptionLancia Delta
CHRA443854-0014 (443854-5014S, 443854-0032)(1000010143) $250.00 NEW IN STOCK, MADE IN USA
Turbo ModelTB0225
Capacity 1.6L, 1600 ccm, 4 Cylinders, 16V
Power 132/140 HP
Engine 831B7.046, 831B3.000, T-Jet
Angle α (compressor housing) 25°
Angle β (turbine housing)125.5°
Bearing Housing444360-0003 (444360-0011)(Water Cool)(1900011230B) $68.40 NEW IN STOCK
Turbine Wheel435259-0001 (435243-0001, 435243-0002, 435243-0004, 435243-0005, 435258-0005, 435737-0001, 435737-0006, 443850-0001)(Ind. 47.11 mm, Exd. 35.48 mm, 11 Blades)(1100020110) $90.80 NEW IN STOCK
Comp. Wheel410450-0011 (Ind. 33.85 mm, Exd. 48.03 mm, 6+6 Blades, Superback)(1200020129) $48.40 NEW IN STOCK
Back plate432280-0001 (430735-0001)(1800016012) $14.00 NEW IN STOCK
Heat shield Number445118-0001 (443594-0001)(2030016092) $13.84 NEW IN STOCK
Repair Kit709143-0001 (200423-0000, 707903-0002)(5000010185) $69.00 NEW IN STOCK
Turbine Housing430609-0098
Compressor Cover409589-0087
Turbine Housing AR 0.63
Actuator 430819-0027
ManufacturerHoneywell-Garrett

Applications

1983-89 Lancia Delta I 1.6 HF Turbo Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
