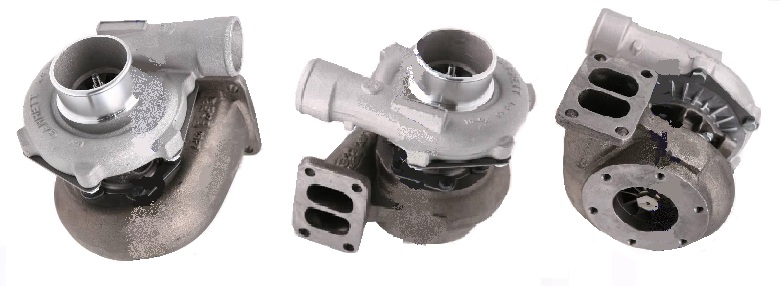

Part Number | 466828-5007S |
Previous Version | 466828-0005, 466828-0007, 466828-5, 466828-7 |
OE number | 2674A145, 2674A145, 0R9513 |
Year | 1989-91 |
CHRA | 447450-0030 (447450-5030S) $295.00 NEW IN STOCK, MADE IN USA |
Description | Combine Harvester |
Turbo Model | TB4131 |
Engine | 1004, 1006-THP2, T1006 |
Displacement | 5.9L, 5980 ccm, 6 Cylinders |
KW | 79.5/126/156 |
RPM Max | 2000/2500 |
Fuel | Diesel |
Angle α (compressor housing) | 180º |
Angle β (turbine housing) | 105º |
Bearing Housing | 430027-0025 (312379, 407285-0038, 430027-0022, 430027-0048) $55.20 NEW IN STOCK |
Turbine Wheel | 446905-0004 (Ind. 57.86 mm, Exd. 73. mm, Trm 62, 11 Blades) $179.00 NEW IN STOCK |
Comp. Wheel | 409826-0006 (318134)(Ind. 48.35 mm, Exd. 70. mm, Trm 48, 6+6 Blades) $60.25 NEW IN STOCK |
Back plate | 408045-0051 (5149542, 311708, 310010, 4N6863)(104244-0000, USE 408045-0034, 408045-0051, /408045-0006, 408206-0002)(1100040360) $38.66 NEW IN STOCK |
Heat shield Number | 409299-0001 (409299-0000)(311943, 7N0012, 3524773B) $29.50 NEW IN STOCK |
Repair Kit | 468100-0000 (188401-0000, 310063, 3524796, 2W0716, 6N7236)(1100040750) $69.60 NEW IN STOCK |
Turbine Housing | 408599-0153 |
Compressor Cover | 441400-0004 |
Turbine Housing A/R | 0.84 |
NOTE | Installation Gaskets Included |
Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 312617, 2405022, 7C7431)(1900000006) (Inox Steel) $13.52 |
Gasket (turbine outlet) | 210226 (2405066) (Stainless Steel) $29.00 |
Gasket oil inlet | 210023 (210023-0000, 147837, 210021, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48 |
Manufacturer | Honeywell-Garrett |
