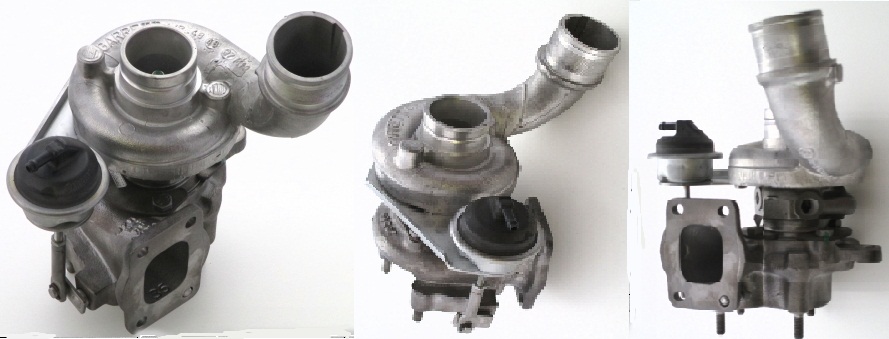

1996-97 Mitsubishi Carisma TBO293 Turbo 454112-0004

1996-97 Mitsubishi Carisma TBO293 Turbo 454112-0004
Item# turbo-car-mitsubishi-TC-4541120004
$690.00
Availability: Usually ships the next business day

Product Description


Part Number 454112-5004S
Previous Version4541120003, 4541120004, 454112-3, 454112-4, 4541125004S, 454112-0003, 454112-0002
OE number 7700868124, M855994, M883396, AB0253F
Year 1996-97
DescriptionMitsubishi Carisma, Volvo V40, S40, Renault R 19
CHRA 443854-0166 (443854-5166S, 443854-0138) $251.00 NEW IN STOCK
Turbo Model TBO293
Engine F8Q734
Engine Manufacturer Renault
Displacement 1.9L, 1870 ccm , 4 Cylinders
KW 66/122
RPM Max3800
FuelDiesel
Angle α (compressor housing)0°
Angle β (turbine housing)117°
Bearing Housing432351-0027 (432351-0017)(WaterCooled) $126.00 NEW IN STOCK
Turbine Wheel433261-0001 (Ind. 35.5 mm, Exd. 47. mm, Trm 7.5, 11 Blades) NEW IN STOCK
Comp. Wheel410450-0011 (Ind. 33.85 mm, Exd. 48.03 mm, Trm 4.80, 6+6 Blades, Superback)(1200020129) $42.41 NEW IN STOCK
Back plate432280-0001 (430735-0001)(11800016012) $14.96 NEW IN STOCK
Heat shield Number445118-0001 (723421-0001) $14.76 NEW IN STOCK
Repair Kit709143-0001 (200423-0000, 707903-0002)(5000010106) $89.00 NEW IN STOCK
Turbine Housing430609-0189
Compressor Cover435817-0010 (435817-0007)
Turbine Housing AR0.35
Actuator 433445-0001 (435407-0005)
Gasket (turbine inlet)210276 (210218, 2445051, 2445334) (Stainless Steel) $24.90
Gasket (turbine outlet)`210889 (Stainless Steel) $39.90
Gasket Kit (2090505324) $29.56
Replaced by454112-0005
ManufacturerHoneywell-Garrett

Applications

1996-97 Mitsubishi Carisma TD with F8Q734 Engine

1996-97 Renault Megane TD with F8Q734 Engine

1996-97 Renault 19 TD with F8Q734 Engine

1996-97 Volvo V40, S40 TD with F8Q734 Engine

Core Charge

There is a $100.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
