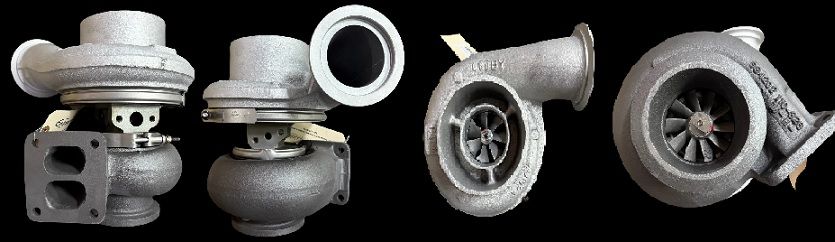

2001-12 Caterpillar Earth Moving 4LE-504 Turbo 155550

Item# turbo-earth-moving-cat-TC-155550
$1,631.35
Availability: Usually ships the next business day

Product Description


Part Number 155550
Previous versions310258, 171376, Replaces 178467
OE number 1P9373, 0R9956, 174-1644
Description Earth Moving 14G/140G-Grader, 528-Skidder
CHRA310125 (180296, 8S9426, 0R5895, 4N9536, 1679671) $1078.75
Turbo Model4LE504, 4LE-504, S3BSL164
Engine Model3176C, 3306
Equip171376
Fuel Diesel
Earth moving Compactor 816, 815
Machine Engine3306
Excavator 235
Motor Grader120, 12F, 12G, 14H, 140, 140G, 140H, 160H, 143H, 14E, 163H, 3176C
Serial No.3PD1-UP, 3PD1-UP, 3N1 to 3N20134 inclusive, 10K07953-11939, CCP00001-UP, 12600001-UP, CCA00001-UP, ASE00001-UP, ARL00001-UP, APN00001-UP, ASD00001-UP, APM00001-UP
Bearing Housing159505 (8S9224, 0R5406, 4N9540) $183.32 NEW IN STOCK NEW IN STOCK
Turbine Wheel 184409 (0R5391, 8S4989)(Ind. 72.1 mm, Exd. 91. mm, 6+6) $301.95 NEW IN STOCK
Comp. Wheel 182353 (7S7697, 6N7461)(144220-0000, 49162-40401, 51382, 1250504401) $350.42 NEW IN STOCK
Back plate 182353 (7S7697, 6N7461)(144220-0000, 49162-40401, 51382, 1250504401) $350.42 NEW IN STOCK
Heat shield Number 188086 (148046, 4N9556, 8S9221)(159535, 49162-13101) $61.82 NEW IN STOCK
Repair Kit 318381/318350 (1250040751) $119.21 NEW IN STOCK
Turbine Housing148450 (0R5417, 8S1430, 8S9226, 1098176 ) $477.15
Compressor Cover146773 (1P0284, 1726540) $566.92
Gasket (turbine inlet)132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $14.21
Gasket (oil outlet) 129120 (210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763) (1900000025) $4.38
Gasket (oil inlet)129113 $4.38
ManufacturerBorg Warner - 3K - Schwitzer

Use 180289

Applications

2001-12 Caterpillar Earth Moving with 3176C Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
