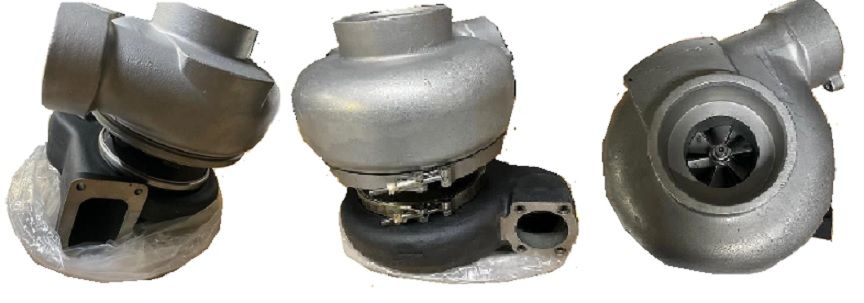

Caterpillar Industrial Engine (D399) 4MD-755 Turbo 182831

Item# turbo-industrial-cat-TC-182831
$2,605.53
Availability: Usually ships the next business day

Product Description


Part Number 182831
Previous Version 178095, 146281, 148528, A168015K
OE number 6N8636, 0R5830
Description Industrial Engine, Generator
CHRA147712 (1P6072, 7S3204, 8S6008, 0R5862) $1633.92
Turbo Model 4MD-755
Engine D399
Fuel CNG
Industrial Engine G399, SR4
Generator SR4
Serial No.49C543-Up
Bearing Housing141418/141419 (3S5441, 0R5400, 1S5372, 1S6000) (25233, 49160-20100, 144524-0000) (1250404450) $193.92/454.34 NEW IN STOCK
Turbine Wheel181474 (138991, 138992, 140388, 140389, 181477, 9511, 55920, 52700, 49160-30500, 144511-0000) (0R5386, 9M0491, 2S7418, 3S6299) (1250404435) $268.49/660.31 NEW IN STOCK
Comp. Wheel140886 (2S1302, 23937, 49160-40600, 144516-0000) (1250404411) $269.16 NEW IN STOCK
Back plate139053 (2S1305, 9M9934, 18494, 144244-0000, 49160-22501) (1250404300) $39.85 NEW IN STOCK
Heat shield Number135947 (1S2098, 7M9912, 135947) (1250404340) $51.73 NEW IN STOCK
Thrust Brg 140964 (137943, 146739, 183189, 186891) (2S1306, 2S1186, 7N3762, 8S2738) (20936, 51307, 49160-21500, 144253-0000) (1250404320) NEW IN STOCK
Repair Kit318357 (6N7246, 2W0726, 3545672) (1250404753) $160.90 NEW IN STOCK
SHIM .127 mm(.003 in.) thick15189 (125648, 8M7167, 49160-42400, 144054-0000) (1250404250) $6.29 NEW IN STOCK
SHIM .127 mm(.005 in.) thick125649 (15190, 8M7168, 144055-0000, 49160-42500) (1250404251) $6.29 NEW IN STOCK
SHIM .254 mm(.010 in.) thick125650 (15191, 8M7169, 49160-42600, 144056-0000) (1250404252) $6.29 NEW IN STOCK
Nozzle Ring 137281 (8M7948, 16575, 52401651049, 49160-15901) (1250404900) 305.82 NEW IN STOCK
Turbine Housing140397 (1S9520) $1242.34
Compressor Cover146282 (7S3205) $425.95
(turbine inlet))132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $13.21
Gasket (oil outlet)129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900) (1900000035) $3.22
Gasket oil inlet210018 (201048, 210018-0000, 1S4810, 409267-0002, 3709738, 3500682, 3519763, 9738, 9988, 129120) (1900000025) $3.22
ManufacturerBorg Warner - 3K - Schwitzer, BWTS USA

Applications

Caterpillar Industrial Engine, Generator with G399, SR4 Engine

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
