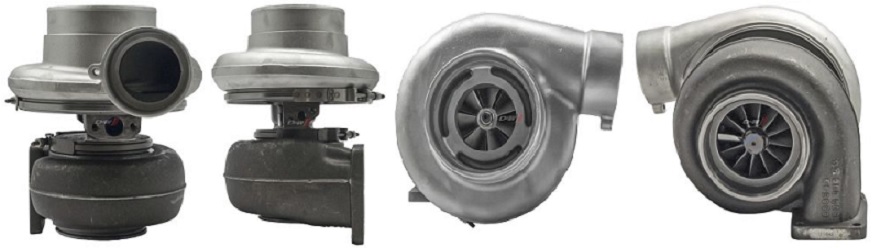

Caterpillar Earth Moving 4MFW-731 Turbo 187126

Item# turbo-earth-moving-cat-TC-187126
$2,927.52
Availability: Usually ships the next business day

Product Description


Part Number 187126
Previous Part Number180458, 187125, 187128, 193463, 193466, 193469, 193470
OE number 0R5953, 1N4706, 1N4707, 4N6597, 6N0576, 6N2931, 7C6703
Description Earth Moving
CHRA178015 (4N7601, 6N6526, 6N0929, 0R5889)(310115, 159135, 159135R, 178015R, 193460, 193460R, 459135, 478015, 493460) $1,218.06 NEW IN STOCK
Turbo Model 4MFW-731
Engine3406
Fuel Diesel
Bearing Housing158542 (0R5408, 4N8124) $344.29 NEW IN STOCK
Turbine Wheel188800 (0R5387, 4N7594)(Ind. 94.54 mm, Exd. 110.38 mm, 12 Blades) $640.62 NEW IN STOCK
Comp. Wheel183900 (4N7599, 7N7723, 159783)(Ind. 83.9 mm, Exd. 122. mm, Trm 9., 7+7 Blades, Flatback) $408.73 NEW IN STOCK
Compressor back plate197651 (51135, 5S4556, 142066, 49162-22500, 52321523000, 52321523001, 143044-0000)(1250403300) $19.50 NEW IN STOCK
Heat shield Number158527 (4N7596) $283.10 NEW IN STOCK
Repair Kit318350 (6N7245, 2W0725, 183211) (1250040751) $119.21 NEW IN STOCK
Turbine Housing (Water Cooled) 182526 (180586, 6N0573, 7N6182, 7C6705) $875.55
Compressor Cover180586/156186 (4N7602, 4N8123) $539.54
Turbine Housing AR3.50
Plug-Pipe9L8412 $7.51
Plug-Pipe(3B0551) $.43
Gasket (turbine inlet)409038-0001 (409038-0000, 3500683, 132040, 7M7273, 210835-0000, 202873, 205396, 1S4295, 9749, 210017-0000)(1900000003) $14.02
Gasket oil inlet210019 (201049, 129119, 409266-0003, 3819900, 9737, 1S6595)(1900000035) $4.38
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
NOTE Also 0R5953, use 193463
ManufacturerBorg Warner - 3K - Schwitzer

Applications

Caterpillar Earth Moving 3406

Core Charge

There is a $600.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
