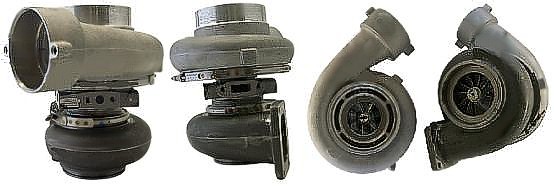

Caterpillar Earth Moving D9H BTL7510 Turbo 709102-0001

Caterpillar Earth Moving D9H BTL7510 Turbo 709102-0001
Item# turbo-earth-moving-cat-TC-7091025001S
$2,862.93
Availability: Usually ships the next business day

Product Description


Part Number709102-5001S
Previous Version700144-0003, 709102-0001, 700144-0001, 700144-0002, 709102-0002, 709102-5003S, 709102-0003, 709102-5007S, 709102-9001S, 709102-1
OE number169-2573, 0R7243, 174-7087, 0R9767, 230-1060, 10R-0432, 10R-1700, 2301060, 10R1700
DescriptionMachine Engine, Track-Type Tractor, Wheel-Type Loader Earth Moving
CHRA449109-0026 (449109-5026S, 449109-0021, USE 710270-0084)(1488170, 169-2578, 0R7244, 1692578, 2942946) $1,886.09
Turbo ModelBTL7510
Engine3508
Model854G
S/N2GR1916-2048, 2GR4243-4243, 2GR4316-4316, 2GR4323-4323, 2GR4367-4367, 2GR4388-4388, 2GR4420-UP, 2GR4420-6443; 2GR7138-8267, 2GR7138-8267, 8WM1-2293, 2GR4427-UP
Cylinders34.50L, 34500 ccm, 8V Cylinders
Fuel Diesel
Machine Engine3508B, 3516B
Track-Type TractorD11N, D11R
Wheel-Type Loader994F
Bearing Housing708605-0001 (449159-0001)(Water Cooled) $406.37 NEW IN STOCK
Turbine Wheel448953-0003 (Ind. 99.1 mm, Exd. 87.9 mm, 11 Blades) $590.10 NEW IN STOCK
Comp. Wheel448671-0019 (Ind. 74.7 mm, Exd. 102.3 mm, Trm 53, 6+6 Blades, Boreless) $189.65 NEW IN STOCK
Back plate710269-0003 (448797-0009)(carbon seal) $138.44 NEW IN STOCK
Repair Kit468267-0007 (468267-0006, 468267-0000) $95.33 NEW IN STOCK
Compressor Cover447297-0022 (1366302) $341.31
Turbine Housing AR1.23
Gasket oil inlet210161 (Paper) $4.80
Gasket (oil outlet)210172 (Paper) $4.80
Gasket (water inlet and outlet)210021 (409037-0000, 210021-0000, 311496, 413671-0000, 3519807, 210021)(1900000027) $4.80
ManufacturerHoneywell-Garrett

Applications

Caterpillar Earth Moving D9H With 3508B; 3516B Engine

There is a $800.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
