Home > Force Inductions > TURBO CHARGERS > EARTH MOVERS > CATERPILLAR > Caterpillar Earth Moving C18 GTA5518BLS Turbo 751286-0023

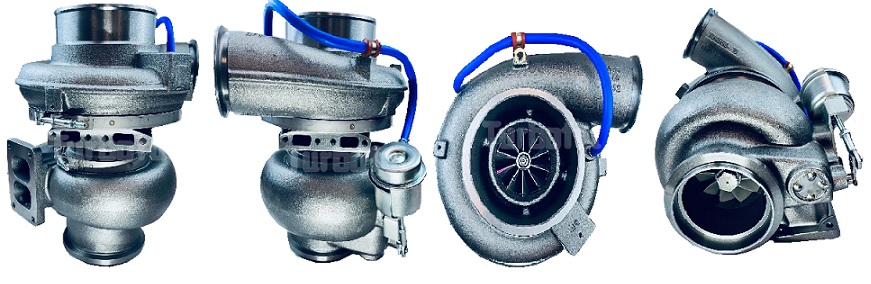

Caterpillar Earth Moving C18 GTA5518BLS Turbo 751286-0023

Item# turbo-earth-moving-cat-TC-7512860023
$4,091.21
Availability: Usually ships the next business day

Product Description


Part Number751286-5023S
Previous Version 751286-0023, 805869-0003, 751286-21
OE number20R-1162, 20R1162, 296-7640, 2967640, 362-0840, 3620840
Description Earth Moving, Compactor, Wheel Dozer, Machine Engine, C18
CHRA757360-0024 (757360-5024S, 757360-0001, 757360-0014, 757360-0047)(10R-8224, 10R8224, 20R-7005, 20R7005, 267-8658, 2678658, 296-7650, 2967650, 302-1410, 3021410, 427-9821, 4279821) $1,720.35 NEW IN STOCK, MADE IN USA
Turbo ModelGTA5518BLS
Fuel Diesel
Displacement18.1L, 18000 ccm
Earth Moving Compactor 836H
Machine EngineC18
Wheel Dozer 834H
Wheel-Type Loader988H
S/NRHX5310-UP
Bearing Housing756692-0013 (Water Cooled) $381.85 NEW IN STOCK
Turbine Wheel 754195-0002 (Ind. 101.83 mm, Exd. 112.15 mm, Trm 6.3, 10 Blades, Boreless) $1,264.40
Comp. Wheel (hipped)751285-0003 (Ind. 84.8 mm, Exd. 117.7 mm, 6+6 Blades)(Titanium Billet) $1447.79 NEW IN STOCK
Back plate706668-0005 (452703-0001) $87.92 NEW IN STOCK
Heat shield Number 710891-0001 $24.85 NEW IN STOCK
Repair Kit468267-0020 (468267-0019) $240.00 NEW IN STOCK
Turbine Housing726858-0012 $645.89
Compressor Cover704569-0110 (447992-0072)(240-6924) $580.54
Turbine housing A/R1.37
Actuator451764-0044 $199.99
Gasket (turbine inlet)132040 (202873, 205396, 205396, 3500683, 210017-0000, 409038-0000, 1S4295, 9749)(1900000003) $14.21
NOTEPartially restricted
Replaced by 751286-0025 (2967635)
ManufacturerHoneywell-Garrett

Applications

Caterpillar 988H Earth moving C18

Core Charge

There is a $1000.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
