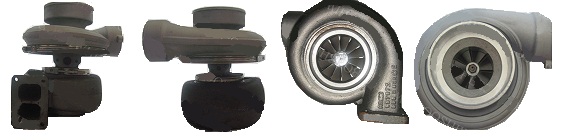

Caterpillar Earth mover Generator, Marine Engine TV8116 Turbo 465969-0005

Caterpillar Earth mover Generator, Marine Engine TV8116 Turbo 465969-0005
Item# turbo-earthmover-caterpillar-TC-4659690005
$2,190.00
Availability: Usually ships the next business day

Product Description


Part Number465969-5005S
Previous Version465969-0005, 465969-9005, 465969-5
OE Number4P2783, 4P-2783, 10R8247
Description GENERATOR SET Caterpillar 3412C, 3412 Generator Set 4BZ00001-UP, Marine Engine
CHRA447403-0001 (447403-5001S, 4P2785) $1662.22 NEW IN STOCK
Turbo ModelTV811
Prefix4BZ, 9EP, DJN, RTY, TGC, 2WJ
Engine3412, 3412, 3412C
FuelDiesel
Displacement27.0L, 27000 ccm, V12 Cylinders
Generator Set Engine3412, 3412, 3412C
Generator SR4
Marine Engine3412C
S/N2WJ1-UP, 1EZ1-UP, 1EZ3925-UP, 1EZ4389-UP
Bearing Housing447162-0001 (4P3821)(Oil Cooled) $148.54 NEW IN STOCK
Turbine Wheel447386-0003 (4P6529) $734.72 NEW IN STOCK
Comp. Wheel443121-0002 (7E0485) $672.38 NEW IN STOCK
Back plate408456-0008 (4P6523) $337.86 NEW IN STOCK
Heat shield Number407657-0008 (4P6527) $43.37 NEW IN STOCK
Repair Kit468267-0009 (468267-0000) $93.00 NEW IN STOCK
Turbine Housing408804-0033 (4P5485) $826.52
Compressor Cover443892-0011 (7E0480) $803.59
Turbine Housing AR1.18
Gasket (turbine inlet)409038-0001 (210835-0000, 9749, 7M7273) $14.02
Gasket oil inlet129119 (201049, 9737, 1S6595, 210019-0000, 409266-0003, 3819900, 52231586500, 129120)(1900000035) $4.38
Gasket (oil outlet)210018 (129120, 210018-0000, 409267-0002, 3709738, 3500682, 201048, 1S4810, 9988, 9738, 3519763)(1900000025) $4.38
ManufacturerHoneywell-Garrett

Applications

Caterpillar Earth moving 3412

Core Charge

There is a $500.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
