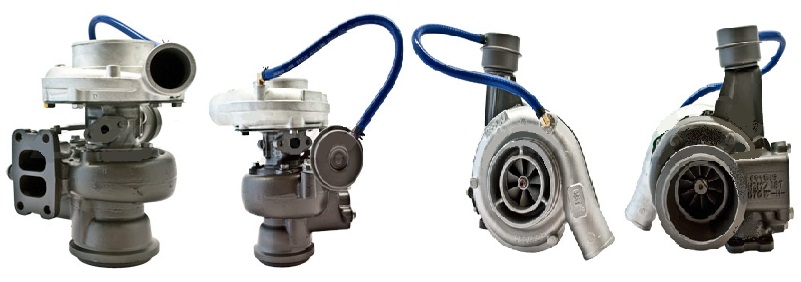

1994-09 Caterpillar Earth Moving S200G001 Turbo 169593

1994-09 Caterpillar Earth Moving S200G001 Turbo 169593
Item# turbo-earth-moving-cat-TC-169593
$1,359.00
Availability: Usually ships the next business day

Product Description


Part Number169593
Previous Version167435, 167435R, 168416, 168416R, 168477, 168477R, 168909, 168909R, 169449, 169449R, 169593R, 169820, 169820R, 178078, 178078R, 467435, 478078
OE number0R6943, 118-2027, 1182027, 126-5420, 1265420, 127-9332, 1279332, 133-9238, 1339238, 141-9231, 1419231, 145-6094, 1456094, 151-5262, 1515262
Description Truck, Earth Moving
CHRA167422 (167422R, 0R6944, 118-2032, 1182032, 178159, 478159) $691.72 NEW IN STOCK
Turbo ModelS200G-001, S200G001
Prefix 2CW, 8WL, 1WM, 4ES, 6RW, 7LZ, 8HW
Displacement7.0L, 7000 ccm
Engine 3126
KW 202/275
Fuel Diesel
Bearing Housing167730 (167758)(Oil-Cooled) $237.89 NEW IN STOCK
Turbine Wheel167729 (Ind. 69.59 mm, Exd. 60.63 mm, Trm 10.87, 10 Blades) $128.00 NEW IN STOCK
Comp. Wheel167731 (Ind. 58.55 mm, Exd. 79.8 mm, Trm 6.4, 7+7 Blades, Superback) $170.99 NEW IN STOCK
Back plate $43.34 NEW IN STOCK
Heat shield Number167745 (2030016117) $18.78 NEW IN STOCK
Repair Kit318378 (318382, 315565, 319257, 312956, 313501, 315438)(1252212750, 5000030021) $97.60 NEW IN STOCK
Turbine Housing166142
Gasket Kit318420 (318420, 2505134, 3545575, 3575687, 3580734, 4027643, 4032401, 4032403, 4032407, 4032438, 4032545, 7C7431) $16.66
ManufacturerBorg Warner - 3K - Schwitzer

Applications

1994-09 Caterpillar Earth Moving with 3126 Engine

Core Charge

There is a $200.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
