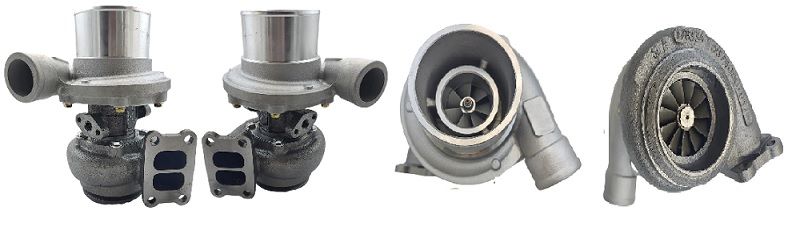

Caterpillar Earth Moving S200S003 Turbo 168412

Item# turbo-earth-moving-cat-TC-168412
$1,890.00
Availability: Usually ships the next business day

Product Description


Part Number 168412
Previous Version168412R
OE number 127-2924, 0R7049, 1272924
Description Earth Moving
CHRA 167927 (0R6911, 1155850, 1155858, 1679271, 167927R, 178161, 317877, 478161) $804.69 NEW IN STOCK
CHRA 167927 Use178161
Turbo Model S200S003
PrefixBFK, BFN, BFX, BGR, BKJ, BKM, BLP, BMX, BNY, BPH, CAM, CBY, SLX, 8LJ, B6J, KEH
Machine Engine 3116, 3126
Excavator 322C
Wheel Tractor-Scrapper 613C, 613C II
S/N3AK1083-UP, 6JK6757-UP, 55K8513-UP, 98Z15032-UP, 55K6690-UP, 98Z1-UP
Engine 3116TA
Bearing Housing167926 (168105, 168106)(Oil Cooled) $$275.09 NEW IN STOCK
Turbine Wheel 167729 (Ind. 69.59 mm, Exd. 60.63 mm, Trm 10.87, 10 Blades)(1100016453, 301050005) $118.00 NEW IN STOCK
Comp. Wheel167929 (Ind. 54 mm, Exd. 76. mm, 6+6 Blades) $156.49 NEW IN STOCK
Back plate167744 (1800016020, 1253200300, 304200001) $19.00 NEW IN STOCK
Heat shield Number167745 (167997)(2030016117, 306010011) $27.28 NEW IN STOCK
Repair Kit318382 (318383)(1253200750, 5000030021, 309200001) $97.60 NEW IN STOCK
Turbine Housing 167605 (1160459) $432.34
Compressor Cover 168189 (1251300) $298.16
Turbine Housing AR .70 A/R
Gasket Kit318419 (318420) $15.55
Manufacturer Borg Warner - 3K - Schwitzer

Applications

Caterpillar Earth Moving with 3116TA Engine

Core Charge

There is a $400.00 core charge which has been included in the price, it means if you DO NOT have or will not send us the original part, we will not refund the core charge. You will be charged at the time of purchase, and will be fully refunded once your old re-build able core is received.

Warranty

This part comes with ONE YEAR unlimited mileage warranty.
